TPCB02593-6-RMM-AGDP-L

Antennas RF Overview

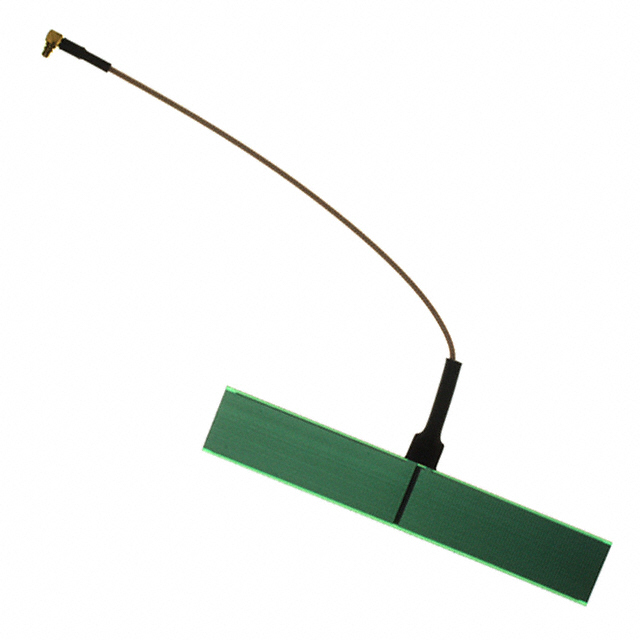

The Nearson TPCB02593-6-RMM-AGDP-L is an embedded microstrip antenna designed for UHF applications. It operates within two frequency bands: 824MHz to 960MHz and 1.71GHz to 1.99GHz. The component features a right-angle SMA connector and offers gain specifications of 0dBi and 2dBi across its operational ranges. Constructed with a PCB trace type, it has a thickness of 0.016 inches (0.40mm). The unit is RoHS compliant and suitable for wireless RF integrated systems requiring compact antenna solutions.

Antennas RF Feature Summary

• Embedded microstrip design for space-constrained integration
• Dual-band operation covering sub-GHz and 1.9GHz ranges
• Right-angle SMA interface for flexible board layout

Antennas RF Applications

• UHF wireless communication modules
• RFID reader antennas
• Industrial telemetry devices

Antennas RF Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure correct connector orientation and impedance matching. Confirm RoHS compliance status through current certification documents. Cross-reference the part number with authorized distributors to avoid counterfeit components. Ensure the receiving facility handles ESD-sensitive packaging appropriately during storage and installation.

Antennas RF Selection Notes

Select this model when dual-band coverage in the 800MHz and 1.9GHz spectrums is required. The right-angle SMA connector facilitates connections where board edge access is limited. Consider the 0.016-inch profile for low-profile enclosure designs. Validate that the 0dBi/2dBi gain meets the link budget requirements for the intended application range.

Antennas RF Part Context

This component belongs to the Nearson TPCB02593 series of embedded microstrip antennas. The series provides various configurations for different mounting styles and connector types. This specific variant utilizes an SMA connector and is optimized for UHF band operations. It serves as a passive radiating element for transmitting and receiving radio frequency signals in compact electronic assemblies.

Antennas RF Replacement Considerations

Check for exact pinout and mechanical dimension compatibility before substituting. Verify that alternative parts support the same dual-band frequencies and SMA interface. Ensure the replacement maintains similar gain characteristics and physical footprint to fit existing enclosures without modification.
