TPCM-2.4-5

$5.36

Description：CMC 2.41MH 5A 2LN TH
Series：TIGHTpak™
Mfr：Acme Electric/Amveco/Actown
Package：Bulk

SKU:6afaf268b632 Category: Common Mode Chokes Brand: Acme Electric/Amveco/Actown

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.41MH 5A 2LN TH
Series：TIGHTpak™
Mfr：Acme Electric/Amveco/Actown
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：36mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.200" L x 0.700" W (30.48mm x 17.78mm)
Height (Max)：1.300" (33.02mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.41 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

TPCM-2.4-5

Overview

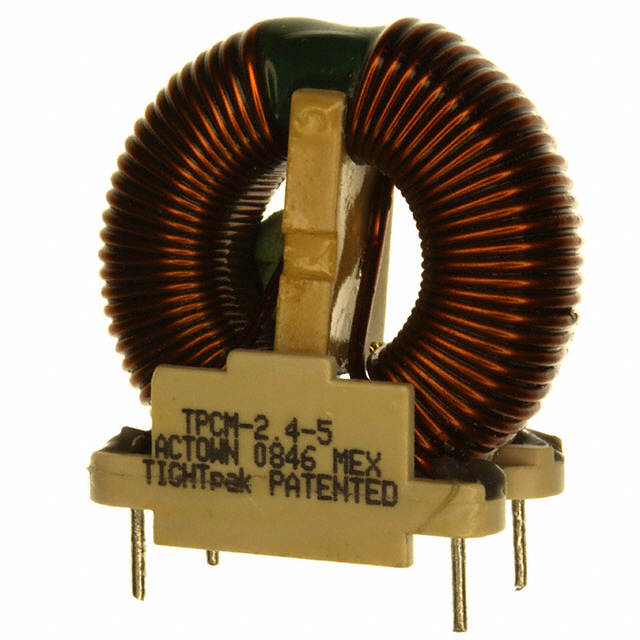

The TPCM-2.4-5 is a through-hole common mode choke manufactured by Acme Electric, Amveco, and Actown. It features an inductance of 2.41 mH and a rated current capacity of 5 A. The component is designed for dual-line applications and utilizes a two-lead terminal configuration.

Feature Summary

Provides common mode noise suppression for dual-line circuits
Supports high current handling capabilities up to 5 A
Utilizes through-hole mounting technology for secure PCB integration

Applications

Industrial power supply filtering
Electromagnetic interference suppression in electronic equipment
Signal integrity protection in dual-line data transmission

Procurement Notes

Verify the manufacturer designation as Acme Electric, Amveco, or Actown during sourcing. Confirm the specific inductance value of 2.41 mH and current rating of 5 A against technical documentation. Ensure the package type matches the required through-hole footprint for assembly compatibility.

Selection Notes

Select this component when dual-line common mode noise reduction is required with a 5 A current rating. The 2.41 mH inductance offers specific filtering characteristics suitable for industrial environments. Verify that the through-hole form factor aligns with the target printed circuit board design constraints.

Part Context

This component belongs to the common mode choke category within power management and signal conditioning components. It serves as a passive filter element designed to attenuate unwanted electromagnetic interference in electrical circuits without affecting differential signals.
