TPCN-203+

Overview

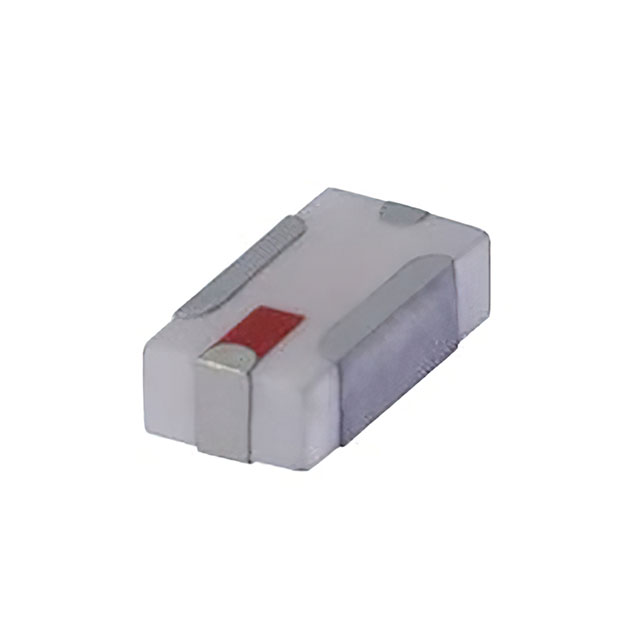

The TPCN-203+ is a 50 Ohm transmission line component manufactured by Mini-Circuits. It operates within a frequency range of DC to 20,000 MHz. The device features a typical insertion loss of 0.4 dB, ensuring minimal signal attenuation during transmission. It is housed in an FV1206-4 surface-mount package with four SMD terminals and no lead construction.

Feature Summary

• Provides low-loss signal transmission via a 50 Ohm impedance path
• Functions as a placeholder element on system circuit boards when LTCC filters are unavailable

Applications

• Signal routing in RF systems requiring minimal insertion loss
• Circuit board prototyping as a substitute for missing LTCC filters
• High-frequency interconnects up to 20 GHz

Procurement Notes

Verify the specific part number suffix against official Mini-Circuits documentation to ensure correct specifications. Confirm that the required impedance and frequency range align with your design needs. Check for RoHS compliance status if environmental regulations apply to your manufacturing process. Ensure the FV1206-4 package dimensions fit your PCB layout constraints before ordering.

Selection Notes

Select this component when a simple, low-loss transmission path is needed without filtering functionality. It is suitable for applications where LTCC filters are not required or are temporarily unavailable. Consider the 0.4 dB insertion loss specification to ensure it meets your system's power budget. The wide bandwidth from DC to 20 GHz makes it versatile for various RF and microwave applications.

Part Context

This component belongs to the Mini-Circuits Thru-Line series, which offers passive transmission lines for RF and microwave circuits. These components are designed to provide reliable signal paths with controlled impedance. The series supports designs requiring minimal signal degradation across broad frequency ranges, serving as essential interconnect elements in complex electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
