TPD6F202YFUR

Overview

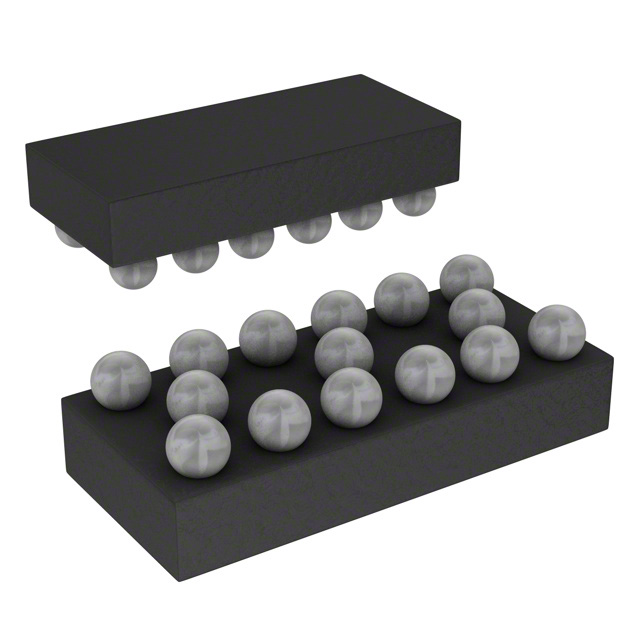

The TPD6F202YFUR is a six-channel EMI filter circuit designed for LCD display data lines. It integrates an RC (Pi) low-pass filter with integrated ESD protection. Key electrical parameters include a cutoff frequency of 108 MHz, series resistance of 100 ohms per channel, and shunt capacitance of 15 pF. The device operates within a temperature range of -40°C to +85°C. It is housed in a compact DSBGA-10 package (specifically 15-XFBGA/DSBGA configuration). This component suppresses electromagnetic interference while protecting sensitive interfaces from electrostatic discharge events.

Feature Summary

• Integrates six-channel RC low-pass filtering with built-in ESD protection for LCD data lines
• Provides high attenuation across the 1 GHz to 3 GHz frequency range
• Designed specifically for suppressing EMI in mobile device display interfaces

Applications

• LCD display data line protection in mobile devices
• EMI suppression for portable electronic displays
• ESD protection for high-speed digital video interfaces

Procurement Notes

Verify component authenticity through authorized Texas Instruments distributors or certified partners. Confirm the specific suffix YFU matches the required DSBGA package variant. Check current lifecycle status as availability may be limited due to end-of-life indications. Ensure storage conditions comply with moisture sensitivity levels for surface-mount components.

Selection Notes

Select this component when designing circuits requiring simultaneous EMI filtering and ESD protection for multiple LCD data channels. The 108 MHz cutoff frequency suits standard LCD interface speeds. Consider the 100-ohm series resistance impact on signal integrity. Verify that the 15-pF capacitance meets the target impedance requirements of the connected display controller.

Part Context

This part belongs to the TPDxF003 family of EMI filters from Texas Instruments, which includes 4, 6, and 8-channel variants. These components are engineered to address increasing EMI challenges in compact mobile electronics. The TPD6F202YFUR specifically targets applications needing balanced performance between noise suppression and signal fidelity for display interfaces.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Texas Instruments application notes for potential cross-references within the TPDxF003 family based on channel count and package constraints.
