TPS38900603NRTERQ1

$5.81

Description：AUTOMOTIVE MULTICHANNEL OVERVOLT
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f0e6ed354f21 Category: Supervisors Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TPS38900603NRTERQ1 is listed in the Supervisors range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is AUTOMOTIVE MULTICHANNEL OVERVOLT. Review the specifications below when checking this part for your BOM.

Supervisors specifications for TPS38900603NRTERQ1

Description：AUTOMOTIVE MULTICHANNEL OVERVOLT
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Simple Reset/Power-On Reset
Number of Voltages Monitored：1
Voltage - Threshold：4V
Output：Open Drain, Push-Pull
Reset：Active Low
Reset Timeout：Adjustable/Selectable
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount, Wettable Flank

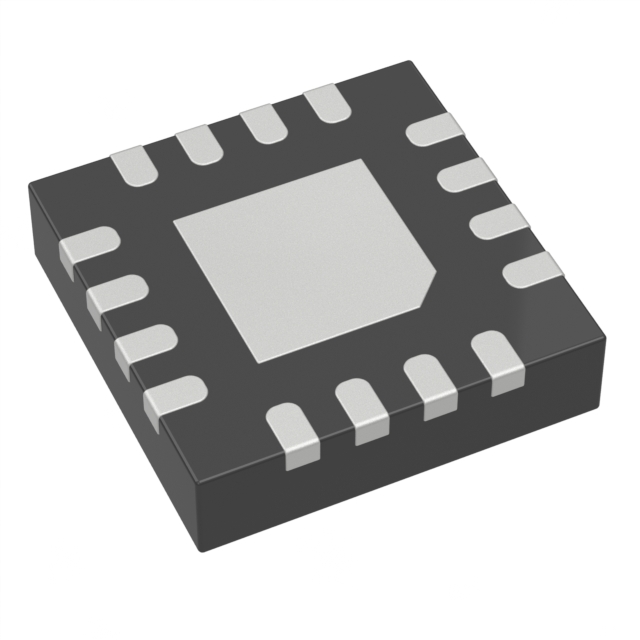

Package / Case：16-WFQFN Exposed Pad
Supplier Device Package：16-WQFN (3x3)
Grade：Automotive
Qualification：AEC-Q100

Supervisors datasheet and documents for TPS38900603NRTERQ1

TPS38900603NRTERQ1

Supervisors Overview

The TPS38900603NRTERQ1 is an automotive-grade multichannel voltage supervisor designed for monitoring multiple power rails. It operates within a supply voltage range of 2.5 V to 5.5 V and features a typical quiescent current of 200 uA. The device provides undervoltage and overvoltage detection capabilities across its monitored inputs, ensuring system integrity in harsh environments. It supports operation from -40°C to +125°C and is housed in a WQFN-16 package.

Supervisors Feature Summary

Automotive qualification compliant with AEC-Q100 standards for reliability
Multichannel architecture for simultaneous monitoring of multiple power supplies
Integrated overvoltage and undervoltage protection mechanisms

Supervisors Applications

Automotive electronic control units (ECUs)
Infotainment system power distribution
Body control module supervision

Supervisors Procurement Notes

Verify the complete part number including suffixes to ensure correct package, temperature grade, and tape/reel configuration. Confirm AEC-Q100 compliance requirements match your specific application needs. Check moisture sensitivity levels and recommended soldering profiles during assembly planning.

Supervisors Selection Notes

Select this component when multichannel supervision is required in automotive applications. Ensure the monitored voltage ranges align with the specific power rail thresholds needed. Consider the WQFN-16 package size constraints and thermal dissipation requirements for the target PCB layout.

Supervisors Part Context

This device belongs to the TPS389006 series of precision voltage supervisors from Texas Instruments. It is engineered specifically for automotive environments requiring high reliability and robust fault detection. The series offers various channel counts and threshold options to suit diverse power management architectures.
