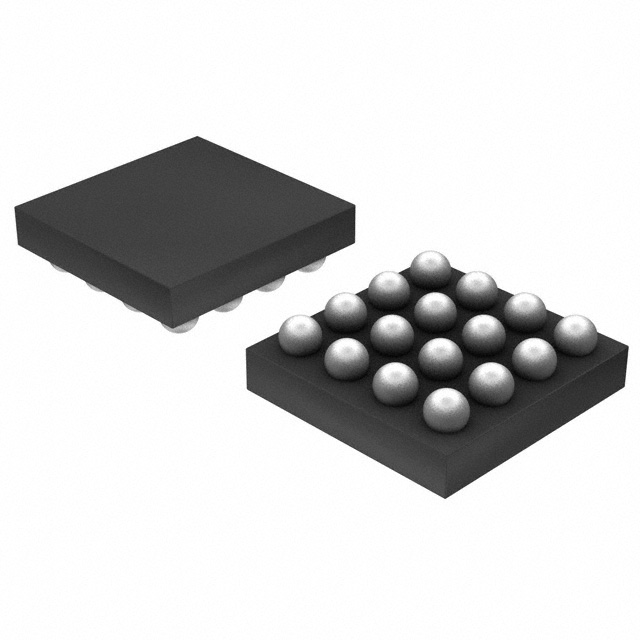

TPS61372YKBT

$4.16

Description：IC REG BOOST ADJ 3.8A 16DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3b66eb2fc676 Category: Voltage Regulators - DC DC Switching Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TPS61372YKBT is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC REG BOOST ADJ 3.8A 16DSBGA. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for TPS61372YKBT

Description：IC REG BOOST ADJ 3.8A 16DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Up
Output Configuration：Positive
Topology：Boost
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：2.5V
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：5V
Voltage - Output (Max)：16V
Current - Output：3.8A
Frequency - Switching：1.5MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：16-XFBGA, DSBGA
Supplier Device Package：16-DSBGA
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for TPS61372YKBT

TPS61372YKBT

Voltage Regulators - DC DC Switching Regulators Overview

The TPS61372YKBT is a synchronous boost converter from Texas Instruments featuring an integrated load disconnect switch. It supports input voltages from 2.5V to 16V and delivers up to 3.6A of output current. The device operates at switching frequencies of 1.8MHz or 2.4MHz, selectable via the EN/SS pin. It includes programmable input average current limit and soft-start functionality. The component is housed in a WQFN package with thermal pad.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrated synchronous rectification for high efficiency
True load disconnect switch isolates battery from load when disabled
Programmable input average current limit protects source
Adjustable switching frequency optimizes performance

Voltage Regulators - DC DC Switching Regulators Applications

Portable consumer electronics
Smartphones and tablets
Medical devices
Industrial handheld instruments

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix YKBT against official datasheets to confirm package type and temperature range. Ensure compatibility with system voltage requirements and current limits before integration. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for applications requiring high efficiency and battery protection. Consider the integrated load disconnect feature for systems needing zero standby current. Evaluate the input current limit settings to match the power source capabilities.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the TPS6137x family of synchronous boost converters. It shares design similarities with other TI parts like the TPS61376, offering comparable features such as load disconnect and current limiting within a compact footprint suitable for space-constrained designs.
