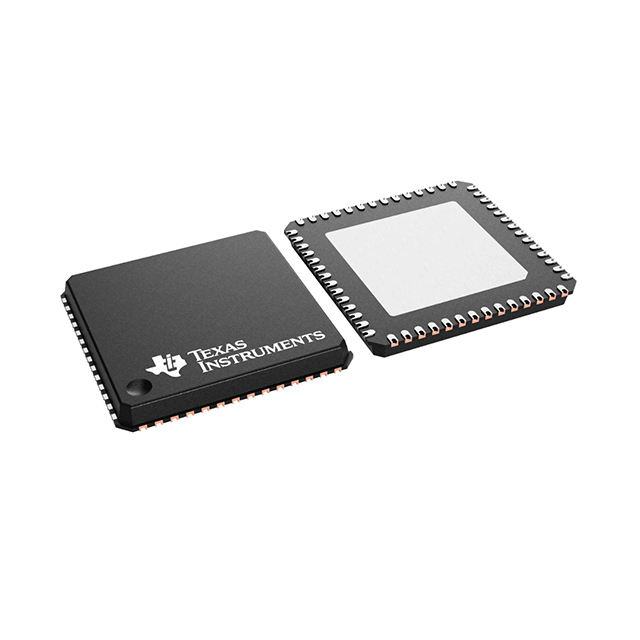

TPS6594120ARWERQ1

Overview

The TPS6594120ARWERQ1 is an automotive-grade Power Management IC (PMIC) designed for safety-relevant applications. It integrates five buck converters and four low-dropout (LDO) regulators. The input voltage range spans from 2.8 V to 5.5 V, with output voltages adjustable from 300 mV to 3.34 V. The device supports a total output current of 14 A across its buck stages. It features programmable switching frequencies and integrated spread spectrum modulation to enhance electromagnetic compatibility performance.

Feature Summary

• Integrated five configurable buck converters and four LDOs for comprehensive power distribution
• Automotive qualification compliant with AEC-Q100 standards for reliability
• Supports internal and external clock synchronization for flexible system timing
• Includes spread spectrum modulation to improve electromagnetic interference characteristics

Applications

• Safety-critical automotive electronic control units
• Advanced driver assistance systems (ADAS) power architectures
• Automotive infotainment and display controller platforms
• Central gateway modules requiring high integration

Procurement Notes

Verify the complete part number including suffixes such as 'A' or 'Q1' to ensure correct package, temperature grade, and tape/reel configuration. Confirm that the specific variant matches the required automotive qualification level and functional safety integrity requirements for the target application before procurement.

Selection Notes

Select this component when designing automotive systems requiring a high-density power solution with multiple regulated outputs. Ensure the design accommodates the 2.8 V to 5.5 V input range and utilizes the available GPIOs for system control. Consider the thermal management requirements associated with the 14 A total current capability in the specified package.

Part Context

This PMIC belongs to the TPS6594-Q1 family, which is engineered specifically for automotive environments. The series provides a consolidated power management solution, reducing board space and component count compared to discrete regulator designs. It is intended for use in complex vehicle electronics where reliability and electromagnetic performance are critical constraints.

Replacement Considerations

Direct replacements within the same family include TPS6594110BRWERQ1 and TPS65941212RWERQ1. Verify pin-to-pin compatibility and electrical parameter alignment, particularly regarding output current capabilities and specific feature sets, before substituting.
