TPS7A1006PYKAR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

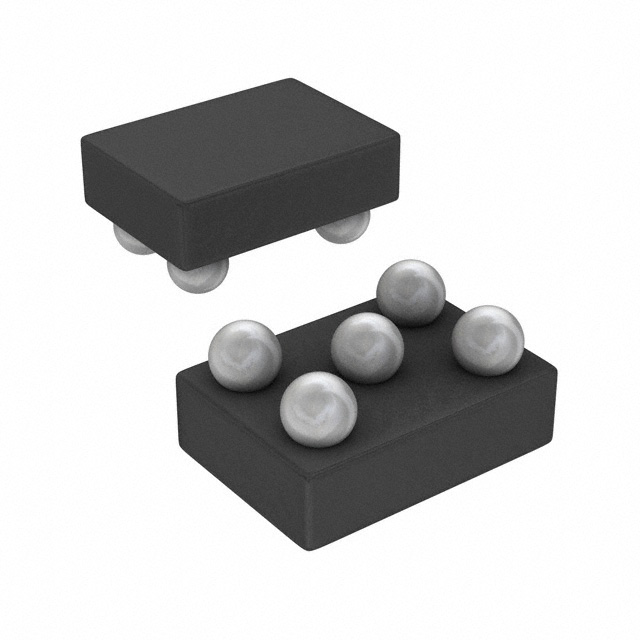

The TPS7A1006PYKAR is a fixed-output linear low-dropout (LDO) voltage regulator manufactured by Texas Instruments. It provides a fixed output voltage of 0.6 V with a maximum continuous output current of 300 mA. The device operates within an input voltage range of up to 3.3 V and features a typical dropout voltage of 70 mV at full load. Quiescent current is specified at 2.6 µA, with a maximum supply current of 9 µA. Power supply rejection ratio (PSRR) ranges from 60 dB at 1 kHz to 35 dB at 1.5 MHz. The component is housed in a 5-DSBGA package and supports junction temperatures from -40°C to +125°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Ultra-low quiescent current design for extended battery life in portable applications
• High power supply rejection ratio across wide frequency bands to minimize noise sensitivity
• Integrated protection mechanisms including overcurrent limiting, thermal shutdown, and undervoltage lockout

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Battery-powered portable electronic devices requiring efficient power management
• Noise-sensitive analog circuits and RF front-ends needing clean power rails
• Embedded systems utilizing low-voltage logic interfaces

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific output voltage and package configuration against official Texas Instruments datasheets before procurement. Confirm that the application circuit meets the maximum input voltage limit of 3.3 V. Ensure thermal management strategies align with the specified operating temperature range of -40°C to +125°C. Check for RoHS compliance status if required by project specifications.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a stable 0.6 V rail is required with minimal static power consumption. The 300 mA output capability suits moderate load applications. Consider the 5-DSBGA package size for space-constrained PCB layouts. Evaluate PSRR requirements against the 1 kHz to 1.5 MHz performance data to ensure adequate noise suppression for sensitive downstream components.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the TPS7A10 series of ultra-low-noise LDO regulators designed for high-performance analog applications. The series emphasizes low quiescent current and high PSRR to support precision signal processing. The TPS7A1006 variant specifically targets low-voltage digital and analog subsystems requiring tight regulation and minimal power waste.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ

What is the maximum input voltage for the TPS7A1006PYKAR?

The maximum input voltage is 3.3 V.

Does the TPS7A1006PYKAR include protection features?

Yes, it includes overcurrent protection, thermal shutdown, and undervoltage lockout (UVLO).
