TPSM5-P50HM25ST1-96.000M

Oscillators Overview

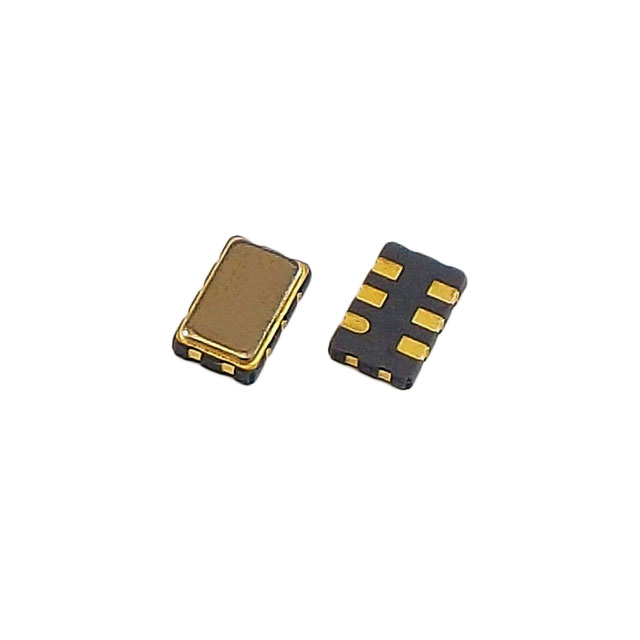

The TPSM5-P50HM25ST1-96.000M is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc. It operates at a frequency of 96.0000 MHz and utilizes PECL output logic. The device is designed for surface mount applications in a 6-SMD, no lead package with dimensions of 5.00mm x 3.20mm and a maximum height of 1.30mm. It functions within an operating temperature range of 0°C to 70°C and requires a 2.5V supply voltage. The component includes enable/disable functionality for power management control.

Oscillators Feature Summary

• Supports PECL output logic for high-speed signal integrity
• Features integrated enable and disable control pins
• Compact surface-mount design suitable for space-constrained PCB layouts

Oscillators Applications

• High-speed digital communication interfaces
• Data acquisition systems requiring precise timing
• Telecommunications equipment clock generation

Oscillators Procurement Notes

Verify the specific output load and drive strength requirements against the system design specifications before procurement. Confirm that the 2.5V supply voltage aligns with the target circuit's power rails. Ensure the PECL termination network is correctly implemented to maintain signal quality. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Oscillators Selection Notes

Select this component when a stable 96 MHz reference is required for PECL-compatible circuits. Consider the 0°C to 70°C commercial temperature range suitability for the intended environment. Evaluate the 6-SMD package footprint compatibility with existing board silkscreens and solder masks. Compare performance against alternative oscillators if tighter jitter specifications or different voltage levels are necessary.

Oscillators Part Context

This part belongs to the TPSM5 series of miniature SMD programmable oscillators from Transko Electronics. The series offers various frequencies and output types in a standardized small form factor. The TPSM5 family is designed to replace discrete crystal and buffer solutions, providing a compact, low-power alternative for modern electronic designs requiring reliable clock sources.

Oscillators Replacement Considerations

The TPSM-P50HM25ST1-96.000M is listed as a related variant with LVPECL outputs. Verify pinout compatibility and logic level differences when substituting. No other direct cross-reference part numbers are confirmed in public documentation.
