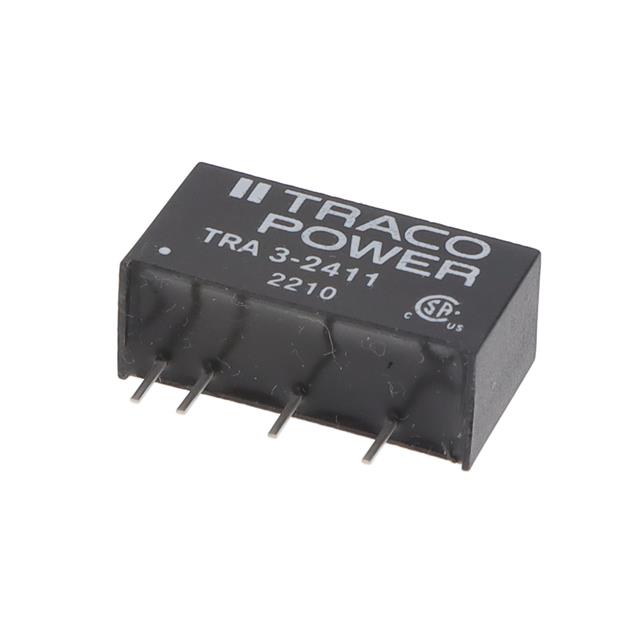

TRA 3-2411

TRA 3-2411 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 5V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TRA 3-2411

• Description：DC DC CONVERTER 5V 3W
• Series：TRA 3 (3W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：3 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：6-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.30" W x 0.40" H (19.5mm x 7.6mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TRA 3-2411
