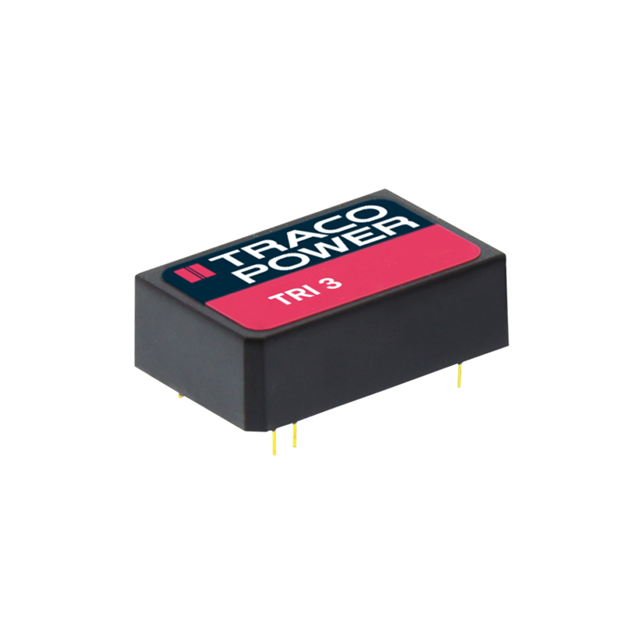

TRI 3-1222

TRI 3-1222 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-12V 3.5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TRI 3-1222

• Description：DC DC CONVERTER +/-12V 3.5W
• Series：TRI 3 (3.5W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：145mA, 145mA
• Power (Watts)：3.5 W
• Voltage - Isolation：9 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 96°C
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 6 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.47" H (31.8mm x 20.3mm x 12.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TRI 3-1222
