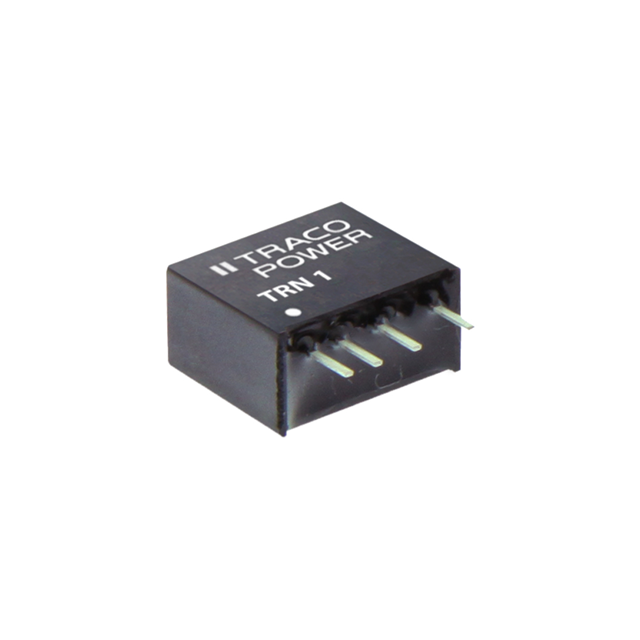

TRN 1-4813

TRN 1-4813 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 15V 1.1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TRN 1-4813

• Description：DC DC CONVERTER 15V 1.1W
• Series：TRN 1 (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：70mA
• Power (Watts)：1.1 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 90°C
• Efficiency：81%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module, 4 Leads
• Size / Dimension：0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TRN 1-4813
