TS3333AQPR

$1.25

Description：IC VREF SERIES 0.15% 8QFN
Series：-
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c173a663ca7b Category: Voltage Reference Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC VREF SERIES 0.15% 8QFN
Series：-
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Output Type：Fixed
Voltage - Output (Min/Fixed)：3.3V
Voltage - Output (Max)：-
Current - Output：5 mA
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount

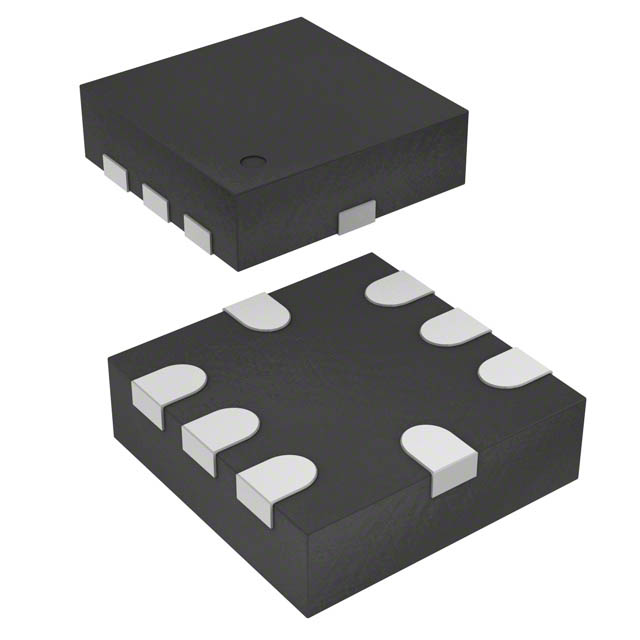

Package / Case：8-UFQFN
Supplier Device Package：8-QFN (1.5x1.5)
Grade：-
Qualification：-

Download product information

TS3333AQPR

Overview

The TS3333AQPR is a micropower high precision series voltage reference manufactured by STMicroelectronics. It provides a fixed output voltage of 3.3 V with an initial accuracy of ±0.15%. The device operates within an extended temperature range from -40 °C to +125 °C and features a maximum temperature coefficient of 30 ppm/°C. It supports an operating input voltage range of 1.8 V to 5.5 V, draws a typical quiescent current of 3.9 μA at 25 °C, and handles a maximum operating current of ±5 mA. The component is housed in a QFN8 surface mount package.

Feature Summary

Delivers stable and precise output voltages suitable for high-precision applications
Ultra-low operating current optimizes performance in power-restricted designs
Maintains stability when used with capacitive loads
Available in compact surface mount packages for space-saving designs

Applications

Portable equipment
Data acquisition systems
Instrumentation
Medical equipment
Test equipment

Procurement Notes

Verify the specific ordering suffix against official documentation to confirm package type and temperature grade. Ensure compatibility with required input voltage ranges and load conditions before integration. Confirm environmental compliance status such as ECOPACK specifications directly with the manufacturer or authorized distributors.

Selection Notes

Select this component for designs requiring a fixed 3.3 V reference with high initial accuracy. Consider the ultra-low quiescent current for battery-powered applications. Verify that the QFN8 package footprint meets board layout constraints. Ensure the operating environment stays within the specified -40 °C to +125 °C range for guaranteed performance.

Part Context

This part belongs to the TS33 family of low power series voltage references. The family includes variants with different fixed output voltages such as 1.25 V, 2.048 V, 2.5 V, and 3.0 V. All members share similar electrical characteristics including low operating current and high accuracy over the industrial temperature range.

Replacement Considerations

Compatible substitutes include TS3312AQPR, TS3320AQPR, TS3325AQPR, and TS3330AQPR for different voltage requirements. Other package options like TS3333ACR (SOT323-3L) and TS3333AMR (SOT23-3L) offer pin-compatible alternatives.
