TS5213CX533 RFG

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

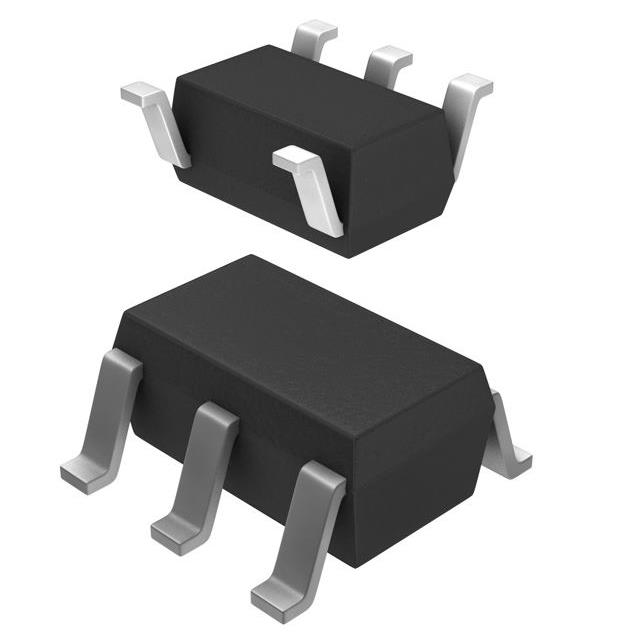

The TS5213CX533 RFG is an 80mA low noise LDO voltage regulator with a fixed 3.3V output, housed in an SOT-25 package. It features ultra-low dropout voltage (typically 50mV at light loads and 320mV at 80mA) and very low ground current (225uA at 20mA). The device includes a precision voltage reference, error correction circuit, current limited output driver, over temperature shutdown, and reverse battery protection. It operates within an input supply voltage range of +2.5V to +16V and supports junction temperatures from -40°C to +125°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Ultra-low noise output for sensitive applications
• Logic-controlled electronic enable function compatible with CMOS or TTL inputs
• Integrated current limit and thermal shutdown protection
• Near-zero power consumption in shutdown mode

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Cellular telephones
• Palmtops and notebook computers
• Battery powered equipment
• SMPS post regulators and DC to DC modules
• Portable applications

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific ordering code TS5213CX533 RFG matches the required 3.3V output variant. Confirm the SOT-25 package type and reel packing quantity of 3,000 pieces per 7-inch reel align with manufacturing requirements. Ensure compliance with RoHS standards and Halogen-Free specifications according to IEC 61249-2-21 before finalizing procurement.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 3.3V output is required with minimal footprint in portable devices. Consider its ultra-low dropout characteristics for battery-powered systems where maintaining regulation near end-of-life voltage is critical. The enable pin allows for precise power management control, making it suitable for applications requiring extended battery life through effective shutdown capabilities.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the TS5213 series of 80mA Low Noise LDO Voltage Regulators manufactured by Taiwan Semiconductor. The series offers similar performance characteristics across various fixed output voltages, including 5V variants like the TS5213CX550. All models share the same SOT-25 packaging and feature set, differing primarily in their regulated output voltage levels.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

Direct substitutes within the same family include other TS5213 variants with different output voltages if the voltage requirement changes. For identical 3.3V output, verify pin compatibility and electrical specifications against other manufacturers' LDOs offering 80mA current capability in SOT-25 packages.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ

What is the minimum output capacitance required for stability?

The TS5213 requires a minimum output capacitance of 0.47μF to maintain stability and improve transient response.

How does the Enable (EN) pin function?

The EN pin is active-high (>2V) and allows ON/OFF control of the regulator. When pulled low (<0.6V), the device shuts down, reducing current drain to micro-amperes.

Is the device stable with no load?

Yes, the TS5213 series remains stable and in regulation even with no load, which is beneficial for CMOS RAM keep-alive applications.
