Product Detailed Parameters
- Description：IC SWITCH SPDTX2 740MOHM 10DSBGA
- Series：-
- Mfr：Texas Instruments
- Package：Tape & Reel (TR),Cut Tape (CT),Bulk
- Switch Circuit：SPDT
- Multiplexer/Demultiplexer Circuit：2:01
- On-State Resistance (Max)：740mOhm
- Channel-to-Channel Matching (ΔRon)：40mOhm
- Voltage - Supply, Single (V+)：2.3V ~ 5.5V
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：80ns, 70ns
- -3db Bandwidth：18.3MHz
- Charge Injection：10pC
- Channel Capacitance (CS(off), CD(off))：70pF
- Current - Leakage (IS(off)) (Max)：50nA
- Crosstalk：-78dB @ 100kHz
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：10-XFBGA, DSBGA
- Supplier Device Package：10-DSBGA
- Number of Circuits：2
- Grade：-
- Qualification：-
Download product information
Overview

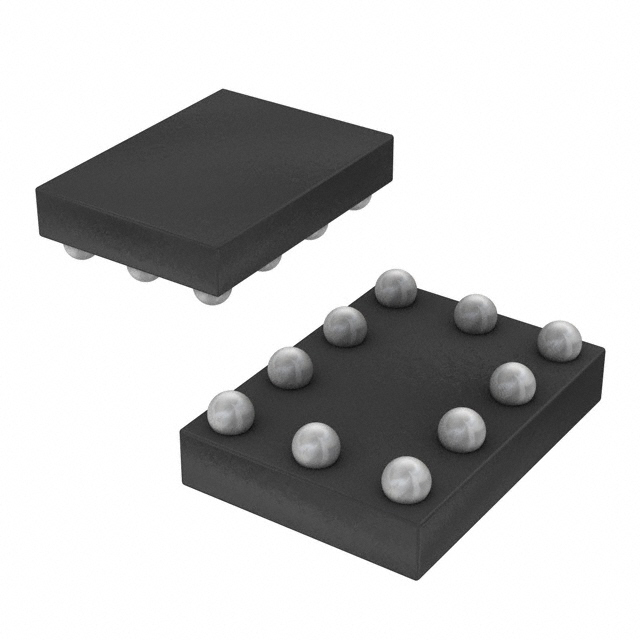

The TS5A22364YZPR is a dual single-pole double-throw (SPDT) analog switch manufactured by Texas Instruments. It operates on a single supply voltage ranging from 2.3 V to 5.5 V. The device features a maximum on-resistance of 740 mOhms and supports a continuous DC switch current of 100 mA. Electrical performance includes a maximum turn-on time of 80 ns and a maximum turn-off time of 70 ns. The component functions within an ambient temperature range of -40°C to +85°C. It is housed in a 10-pin DSBGA package.
Feature Summary
- Dual SPDT configuration with negative signaling capability
- Low power consumption with 1.3 uA maximum supply current
- High bandwidth supporting signal integrity
Applications
- Portable multimedia equipment
- LCD video projection systems
- Video buffering and level shifting circuits
Procurement Notes
Verify the specific suffix YZPR to confirm the DSBGA-10 package type and reel packaging format. Ensure the order matches the Texas Instruments manufacturer part number exactly. Confirm RoHS compliance status through official documentation before procurement. Validate that the requested quantity aligns with standard tape-and-reel specifications.
Selection Notes
Select this component for designs requiring low on-resistance and support for negative input signals. Compare against the TS5A22362 if a different package footprint is required, as both share identical electrical characteristics. Consider the TS5A22364DRCR if a VSON-10 package is preferred over the DSBGA form factor. Verify voltage headroom requirements against the 2.3 V minimum operating limit.
Part Context
This device belongs to the TS5A2236x family of low-power analog switches. The series is designed for applications demanding small footprints and high performance. The TS5A22364 variant specifically denotes the dual SPDT configuration. The YZPR suffix identifies the specific surface-mount package and shipping method used by the manufacturer.
Replacement Considerations
The TS5A22362 offers equivalent electrical performance but utilizes a DSBGA-10 package. The TS5A22364DRCR provides the same functionality in a VSON-10 package. Cross-reference pinouts and thermal characteristics when substituting these variants.
