Product Detailed Parameters
- Description：IC SWITCH SPDT X 2 1OHM 12DSBGA
- Series：-
- Mfr：Texas Instruments
- Package：Tape & Reel (TR),Cut Tape (CT),Bulk
- Switch Circuit：SPDT
- Multiplexer/Demultiplexer Circuit：2:01
- On-State Resistance (Max)：1Ohm
- Channel-to-Channel Matching (ΔRon)：100mOhm
- Voltage - Supply, Single (V+)：2.25V ~ 5.5V
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：374ns, 325ns
- -3db Bandwidth：32MHz
- Charge Injection：168pC
- Channel Capacitance (CS(off), CD(off))：48pF
- Current - Leakage (IS(off)) (Max)：50nA
- Crosstalk：-70dB @ 100kHz
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：12-UFBGA, DSBGA
- Supplier Device Package：12-DSBGA (1.57x1.17)
- Number of Circuits：2
- Grade：-
- Qualification：-
Download product information
Overview

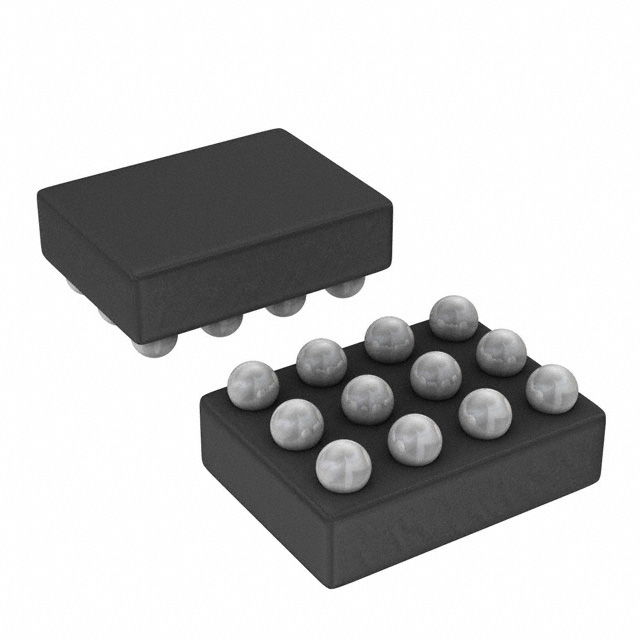

The TS5A22366YFCR is a dual single-pole double-throw (SPDT) analog switch manufactured by Texas Instruments. It operates on a single supply voltage ranging from 2.25 V to 5.5 V. The device features a maximum on-resistance of 1 Ohm and supports a continuous DC switch current of 100 mA. Electrical performance includes a maximum turn-on time of 374 ns and a maximum turn-off time of 325 ns. The component draws a maximum supply current of 14 uA and functions within an operating temperature range of -40°C to +85°C. It is housed in a DSBGA-12 surface-mount package.
Feature Summary
- Dual SPDT configuration for signal routing
- Low on-resistance for minimal signal loss
- Single-supply operation capability
Applications
- Portable audio equipment signal switching
- Video signal path selection
- Data acquisition systems
Procurement Notes
Verify the specific ordering suffix YFCR to confirm the DSBGA-12 package type and reel packaging details. Ensure compatibility with the required voltage levels and thermal management specifications for the intended application environment before finalizing procurement orders.
Selection Notes
Select this component when a dual-channel SPDT switch is required with low on-resistance characteristics. Consider the DSBGA-12 package constraints for PCB layout. Verify that the 2.25 V minimum supply voltage aligns with the system power rails and that the 100 mA current rating meets load requirements.
Part Context
This part belongs to the TS5A22366 series of analog switches. It shares functional similarities with other devices in the family but differs in package options and specific electrical parameters such as on-resistance and speed. The YFCR suffix denotes the specific tape-and-reel packaging format for automated assembly.
Replacement Considerations
The TS5A22362YZPR offers similar dual SPDT functionality but features a lower on-resistance of 0.65 Ohm and faster switching times. However, it utilizes a DSBGA-10 package, requiring footprint adaptation. Cross-check pinout compatibility and electrical limits before substitution.
