TSB1N15H2G45NS024T

Overview

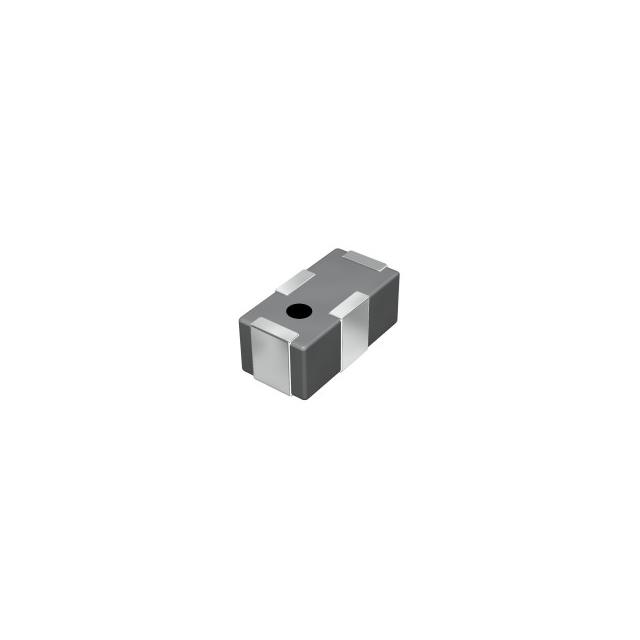

The TSB1N15H2G45NS024T is a multilayer ceramic bandpass filter manufactured by Taiyo Yuden. It operates with a center frequency of 2.45 GHz and a bandwidth of 100 MHz. The device provides 3 dB insertion loss within the passband range of 2400 to 2500 MHz at +25 °C, with a maximum insertion loss of 3.3 dB in the same range. Packaged in a compact 0402 (1005 Metric) surface-mount format, it supports LTE and 5G New Radio applications.

Feature Summary

• Multilayer ceramic construction for signal conditioning
• Compact low-profile package design
• Bandpass filtering capability for RF signals

Applications

• LTE systems
• 5G New Radio (NR)
• RF signal conditioning

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance status as indicated in public documentation. Ensure the specific suffix matches required specifications. Request official datasheets for precise electrical parameter validation before integration into production designs.

Selection Notes

Select this component for applications requiring a 2.45 GHz center frequency with 100 MHz bandwidth. The 0402 package suits space-constrained PCB layouts. Verify insertion loss requirements against the specified 3 dB maximum in the passband. Ensure compatibility with LTE and 5G NR frequency bands.

Part Context

This part belongs to the TSB1 series of multilayer ceramic devices from Taiyo Yuden. These components are designed as bandpass filters for radio frequency applications. The series utilizes LTCC technology to provide reliable signal conditioning in compact forms suitable for modern wireless communication standards.

Replacement Considerations

FI105B245024-T is documented as a suggested alternate part number.
