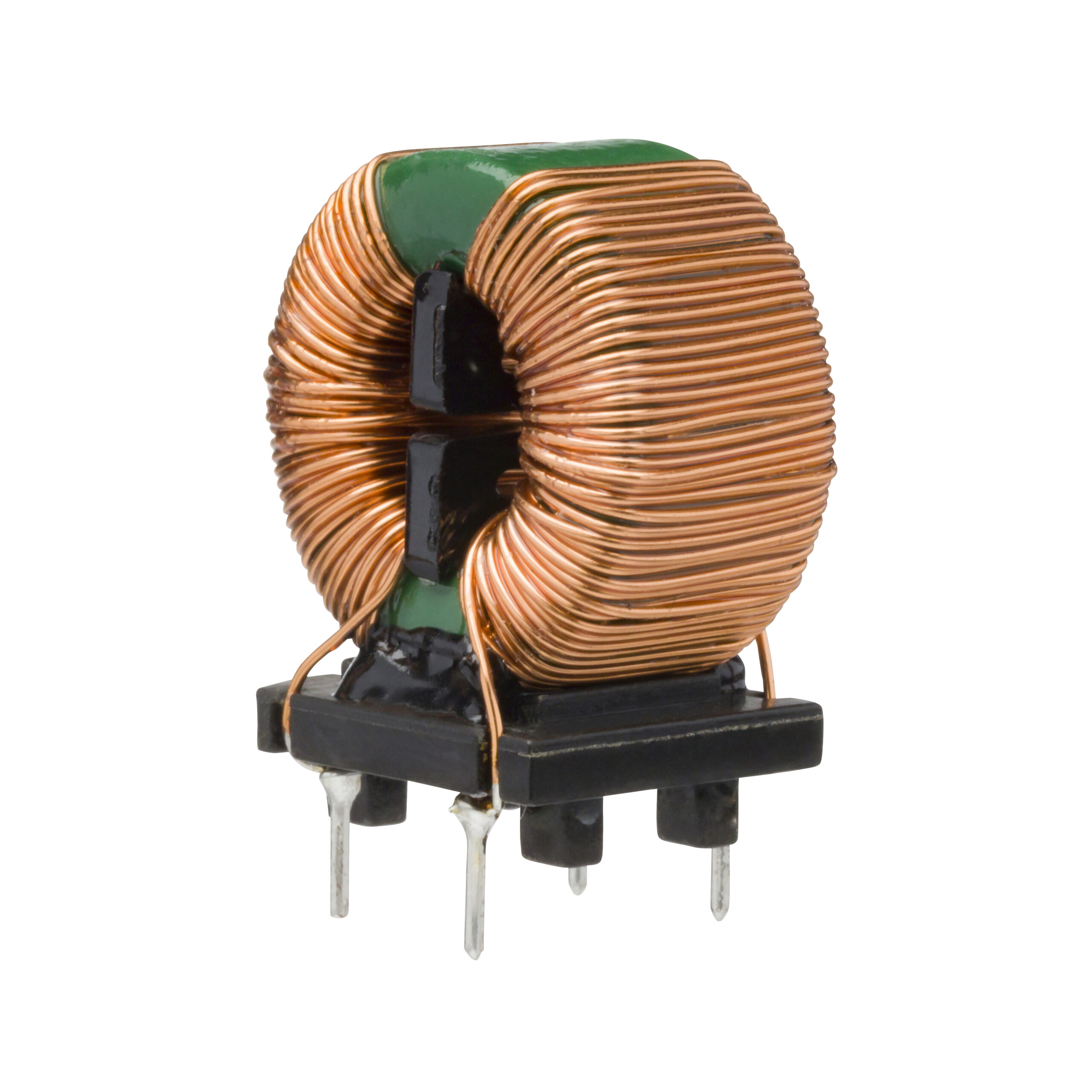

TSD-4091

$12.28

Description：CMC 1.5A 2LN TH
Series：-
Mfr：Premier Magnetics
Package：Bulk

SKU:7760cb38c0a5 Category: Common Mode Chokes Brand: Premier Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.5A 2LN TH
Series：-
Mfr：Premier Magnetics
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：270mOhm
Voltage Rating - DC：-
Voltage Rating - AC：1500V (1.5kV)
Operating Temperature：130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：1.004" (25.50mm)
Package / Case：-
Inductance @ Frequency：-
Impedance @ Frequency：-

Download product information

TSD-4091

Overview

The TSD-4091 is a two-line common mode choke manufactured by Premier Magnetics, designed for through-hole mounting. It serves as an electromagnetic interference (EMI) filter component intended to suppress noise in differential signal lines. The device is constructed to provide effective attenuation of common mode signals while allowing differential signals to pass with minimal loss. This component is suitable for applications requiring reliable signal integrity and noise reduction in electronic circuits.

Feature Summary

Two-line common mode choke design
Through-hole mounting capability
Effective electromagnetic interference suppression

Applications

Signal conditioning circuits
Power conversion systems
Electromagnetic compatibility filtering

Procurement Notes

Verify the specific datasheet version for the TSD-4091 from Premier Magnetics or authorized distributors to confirm current electrical specifications and mechanical dimensions. Ensure that the component meets the required safety certifications such as UL recognition if applicable to your design. Cross-reference part numbers carefully to avoid confusion with similar series components like the TSD-940 or TSD-1110 which may have different electrical characteristics.

Selection Notes

Select the TSD-4091 when a through-hole common mode choke is required for two-line signal paths. Consider its physical size and mounting style relative to your PCB layout constraints. Evaluate the impedance characteristics against the noise frequencies present in your application to ensure adequate attenuation. Confirm that the current rating and voltage ratings align with the operational parameters of the target circuit.

Part Context

Premier Magnetics specializes in magnetic components including transformers, inductors, chokes, and filters for power conversion and signal conditioning. The company offers a range of UL/CSA recognized products. The TSD-4091 belongs to their line of common mode chokes, distinct from their switching transformers like the TSD-940 series designed for off-line PWM regulators.
