Product Detailed Parameters
- Description：CMC 2LN TH
- Series：-
- Mfr：Premier Magnetics
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：2500V (2.5kV)
- Operating Temperature：130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：0.610" (15.50mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Download product information
Overview

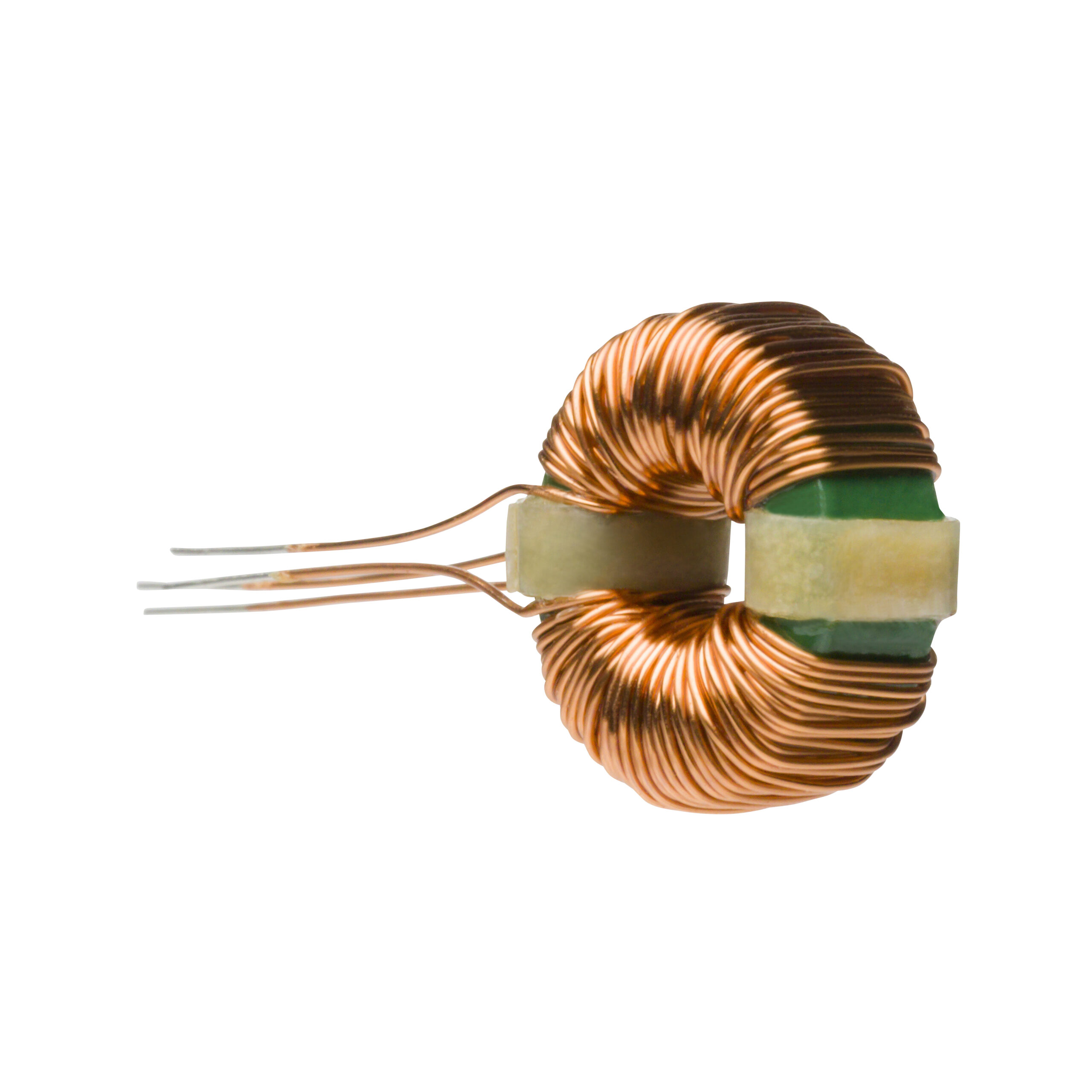

The TSD-4546 is a two-line common mode choke manufactured by Premier Magnetics, designed for through-hole mounting. It features a voltage rating of 2500V AC and an operating temperature range up to 130°C. This component serves as a differential mode choke with dual lines, intended for noise suppression in electronic circuits requiring high isolation and thermal stability.
Feature Summary
- Provides common mode noise suppression for two-line circuits
- Supports through-hole mounting for secure PCB integration
- Rated for 2500V AC insulation voltage
- Operates reliably at temperatures up to 130°C
Applications
- Power supply input filtering
- Industrial control systems
- Medical equipment signal integrity
Procurement Notes
Verify the exact datasheet specifications directly from Premier Magnetics or authorized distributors before procurement. Confirm that the 2500V AC rating and 130°C temperature limit meet your specific application requirements. Ensure through-hole compatibility with your PCB layout. Cross-reference part numbers to avoid confusion with similar series components.
Selection Notes
Select this component when high isolation voltage and elevated temperature operation are required for two-line noise suppression. The through-hole design suits applications needing robust mechanical attachment. Evaluate if the 2500V AC rating aligns with your system's safety standards. Consider the physical size constraints for through-hole placement on your circuit board.
Part Context
Premier Magnetics specializes in magnetic components including transformers, inductors, chokes, and filters. The TSD-4546 belongs to their line of common mode chokes, engineered for reliability in demanding environments. This product supports industries requiring precise electromagnetic interference mitigation and durable magnetic solutions.
FAQ
What is the maximum operating temperature for the TSD-4546?
The TSD-4546 has a maximum operating temperature of 130°C.
Is the TSD-4546 suitable for high-voltage applications?
Yes, it is rated for 2500V AC, making it suitable for high-voltage isolation requirements.
