Product Detailed Parameters
- Description：CMC 2LN TH
- Series：-
- Mfr：Premier Magnetics
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：1000V (1kV)
- Operating Temperature：130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：0.453" (11.50mm)
- Package / Case：-
- Inductance @ Frequency：-
- Impedance @ Frequency：-
Download product information
Overview

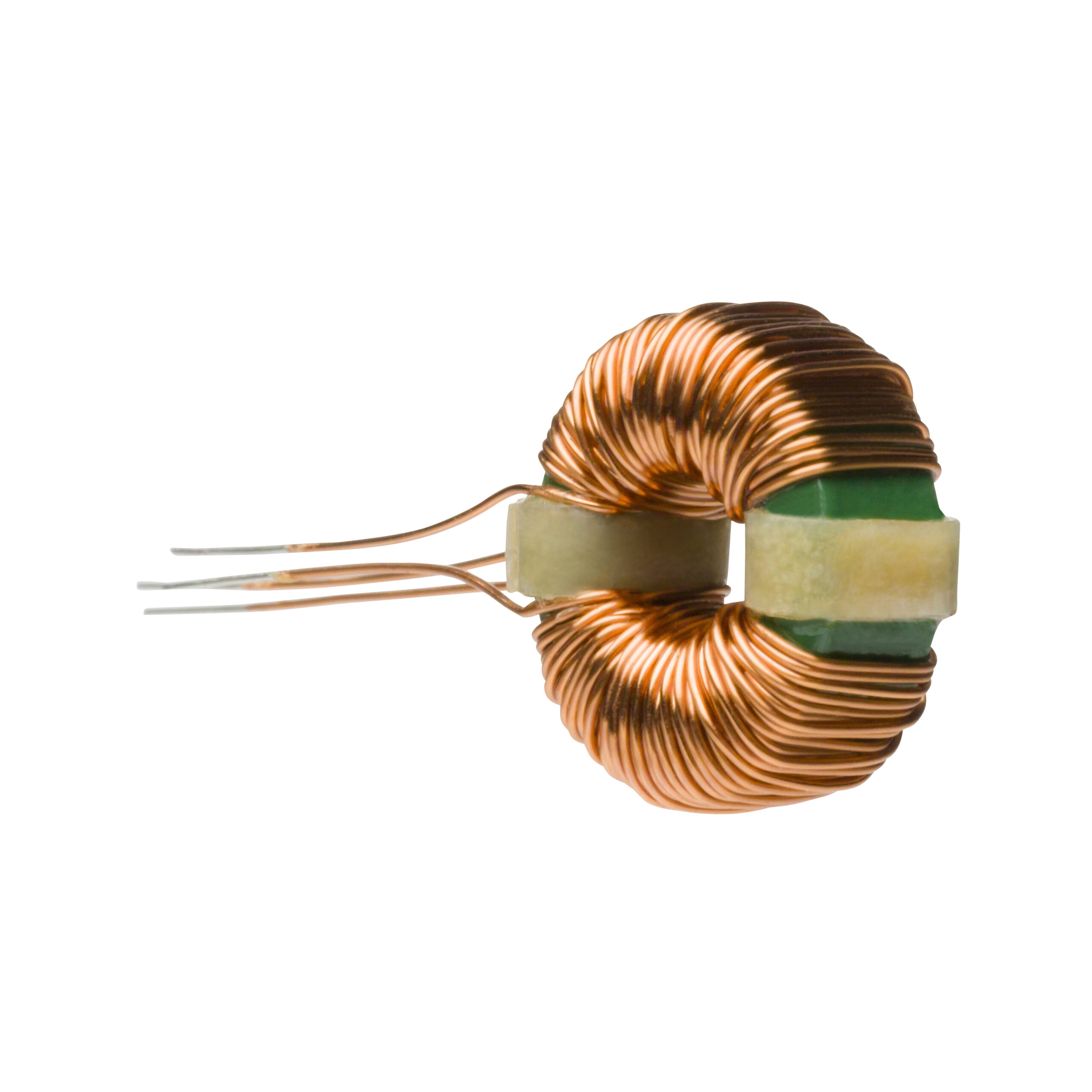

The TSD-4547 is a two-line common mode choke manufactured by Premier Magnetics, designed for through-hole mounting. It functions as an electromagnetic interference filter within electronic circuits. The component is RoHS compliant and operates at temperatures up to 130°C. As a magnetic component, it suppresses noise on multiple lines without providing specific electrical parameter values in the available documentation.
Feature Summary
- Provides common mode noise suppression for two-line configurations
- Designed for reliable through-hole PCB integration
- Constructed with materials compliant with RoHS standards
Applications
- Electromagnetic interference filtering in communication systems
- Noise suppression in networking equipment
- Signal integrity protection in power applications
Procurement Notes
Verify the exact datasheet specifications directly from Premier Magnetics before integration, as public distributor listings lack detailed electrical parameters. Confirm that the through-hole package dimensions align with your PCB layout requirements. Ensure the operating temperature range of 130°C meets your environmental conditions. Cross-reference the part number to avoid confusion with similar series components.
Selection Notes
Select this component when a through-hole solution is required for two-line common mode noise reduction. Consider the thermal rating of 130°C for high-temperature environments. Verify mechanical fit for the through-hole footprint. This component suits applications where discrete magnetic filtering is necessary for signal clarity in power or data lines.
Part Context
Premier Magnetics specializes in magnetic components including transformers, inductors, chokes, and filters. The TSD-4547 belongs to their line of common mode chokes intended for communication, networking, and power applications. The company focuses on designing components that support signal integrity and electromagnetic compatibility in various electronic systems.
Replacement Considerations
No publicly confirmed substitute part numbers are available in the provided documentation. Consult Premier Magnetics technical support for direct equivalents or functional alternatives that match the two-line through-hole form factor.
