TSHC-140-S-36-716-F-LF

Headers, Male Pins Overview

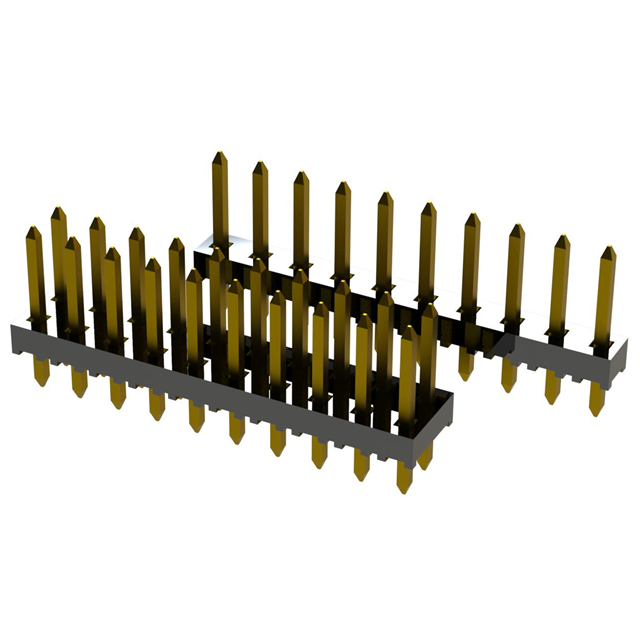

The TSHC-140-S-36-716-F-LF is a .100 inch (2.54mm) header connector manufactured by Major League Electronics. It features a single row of 40 positions designed for through-hole mounting. The component utilizes a straight orientation with gold contact plating and lead-free construction. Key dimensional specifications include an insulation height of 0.100 inches, a mating contact length of 0.716 inches, and a post contact length of 0.714 inches. The overall contact length measures 1.530 inches.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single row design accommodating 40 signal or power connections
• Gold-plated contacts to ensure reliable conductivity and corrosion resistance
• Lead-free construction compliant with environmental standards

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics board-to-board linking
• Telecommunications equipment signal routing
• General-purpose circuit board assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm material composition and termination style. Ensure that the through-hole footprint on the target printed circuit board matches the specified pin spacing and hole dimensions. Confirm compliance requirements such as RoHS status if applicable to the end product regulations. Cross-reference the contact length parameters with mechanical clearance constraints in the final assembly design.

Headers, Male Pins Selection Notes

Select this component when a single-row 40-position header is required for direct PCB insertion. The .100 inch pitch is standard for many legacy and modern electronic designs. Consider the overall height and contact length to ensure adequate clearance for adjacent components or enclosures. Evaluate the need for gold plating based on the operating environment and cycle life requirements.

Headers, Male Pins Part Context

This part belongs to the TSHC series of header connectors from Major League Electronics. The series offers various position counts and row configurations to support diverse connectivity needs. The specific model denotes a single-row variant with defined contact lengths suitable for standard thickness boards. It serves as a fundamental passive interconnect element within larger electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes must maintain the same .100 inch pitch, 40-position count, and through-hole termination. Verify that alternative manufacturers offer identical contact length and insulation height specifications to fit existing tooling and mechanical constraints. Ensure equivalent plating materials are used to preserve electrical performance characteristics.
