TSHC-212-D-07-300-G-LF

Headers, Male Pins Overview

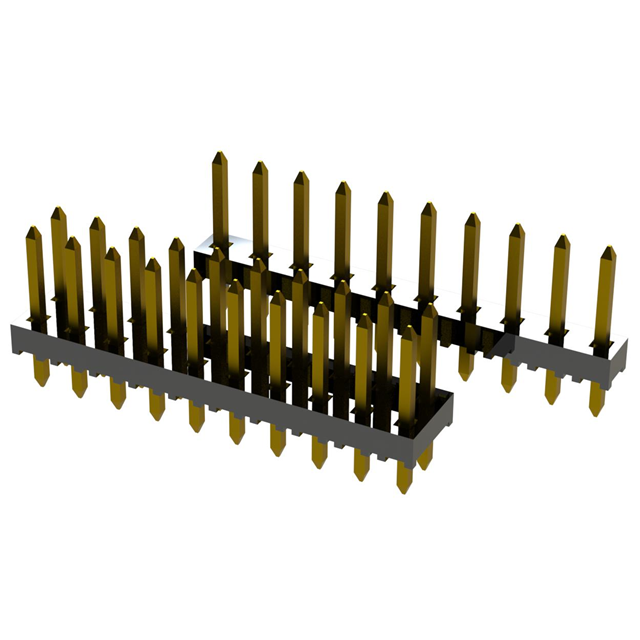

The TSHC-212-D-07-300-G-LF is a through-hole header connector manufactured by Major League Electronics. It features 24 positions arranged in a dual-row configuration with a 0.079-inch (2.00mm) pitch. The contacts are constructed from phosphor bronze and finished with gold plating, including a 10.0µin mating thickness. This component is designed for board-to-board or cable-to-board interconnections requiring robust mechanical stability and reliable electrical performance in industrial applications.

Headers, Male Pins Feature Summary

• Through-hole mounting design ensures secure attachment to printed circuit boards
• Dual-row arrangement provides high-density connection capabilities
• Gold-plated phosphor bronze contacts offer corrosion resistance and low contact impedance

Headers, Male Pins Applications

• Industrial control systems requiring durable interconnects
• Test and measurement equipment interfaces
• Automotive electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against the schematic requirements before procurement. Confirm that the 0.079-inch pitch matches the PCB footprint design. Ensure the through-hole termination method aligns with the assembly process capabilities. Check for any specific environmental ratings if the application involves extreme temperatures or harsh conditions.

Headers, Male Pins Selection Notes

Select this component when a 24-position dual-row header with a 2.00mm pitch is required. Consider the gold plating thickness for wear resistance in high-cycle applications. Evaluate the mechanical retention strength of the through-hole pins against vibration requirements. Compare alternative pitches if space constraints differ from the standard 0.079-inch dimension.

Headers, Male Pins Part Context

This part belongs to the TSHC series of headers from Major League Electronics. The series offers various pitch options and row configurations. The TSHC-212 variant specifically denotes the 24-position dual-row format. The suffix indicates lead-free compliance and gold plating specifications. This series is commonly used in general-purpose electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 24-position dual-row layout and 2.00mm pitch. Verify that alternative manufacturers provide equivalent gold plating thickness on phosphor bronze contacts. Ensure the replacement part maintains the same through-hole termination style and overall height dimensions for proper fitment.
