TSHC-218-D-10-158-GT-LF

Headers, Male Pins Overview

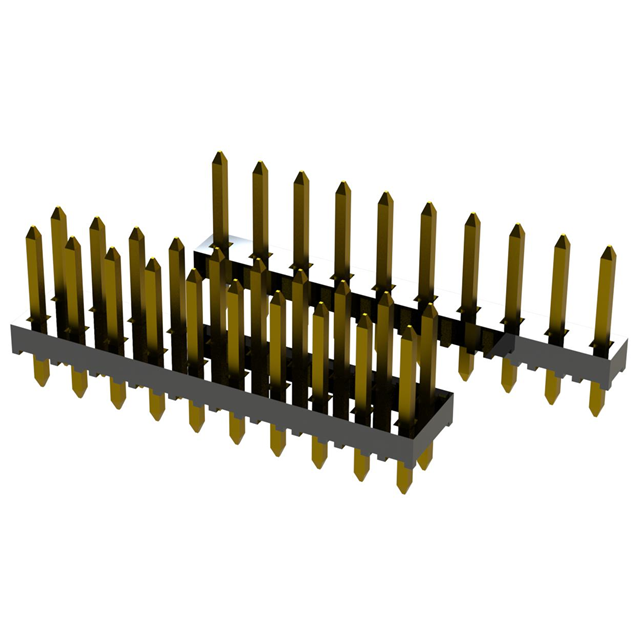

The TSHC-218-D-10-158-GT-LF is a board connector header manufactured by Major League Electronics. It features a dual row configuration with 36 total positions arranged in a 2x18 layout. The component utilizes a 0.079-inch (2.00mm) centerline pitch for contact spacing. It is designed for through-hole mounting on printed circuit boards. The part includes a .079 header specification and employs GT plating options for the contact terminals.

Headers, Male Pins Feature Summary

• Dual row header configuration providing 36 contact positions
• Through-hole mounting technology for PCB integration
• 0.079 inch (2.00mm) centerline pitch design
• GT terminal plating specification for contact surfaces

Headers, Male Pins Applications

• General purpose board-to-board interconnections
• Industrial control system signal routing
• Consumer electronics assembly interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Major League Electronics documentation to confirm exact plating and body height specifications. Ensure the through-hole footprint matches the target PCB design requirements. Confirm RoHS compliance status directly from the manufacturer's current datasheet before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 2.00mm pitch dual row header is required for through-hole applications. Evaluate the mechanical stability needs against the unshrouded header design. Consider the contact termination method compatibility with standard soldering processes. Review the physical dimensions to ensure adequate clearance within the enclosure constraints.

Headers, Male Pins Part Context

This part belongs to the TSHC series of board connectors produced by Major League Electronics. The series offers various row configurations and pitch options for different electronic assembly needs. The TSHC designation indicates a specific header style within the company's broader connector portfolio, focusing on reliable through-hole connectivity solutions.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical and electrical compatibility if considering alternative manufacturers. Check pinout alignment and pitch measurements carefully before attempting any cross-brand substitution.
