TSHC-507-D-090-06-120-GT-LF

Headers, Male Pins Overview

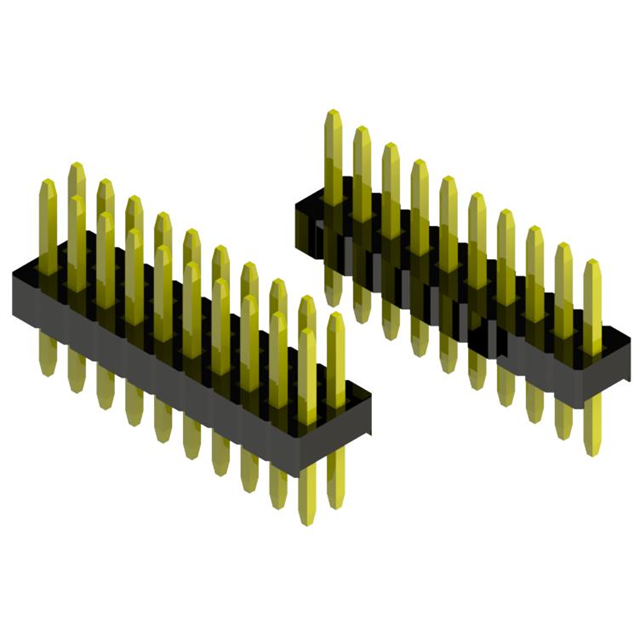

The TSHC-507-D-090-06-120-GT-LF is a board connector manufactured by Major League Electronics. It features 14 contacts arranged in a dual-row configuration with a male gender and straight orientation. The component utilizes a 0.05 inch (1.27 mm) pitch and employs solder terminals for through-hole mounting. It includes a locking mechanism and is designed as a receptacle. The connector complies with RoHS standards.

Headers, Male Pins Feature Summary

• Dual-row male header configuration for board-to-board connectivity
• Through-hole solder terminal design with integrated locking clip
• Polarized terminal strip construction to ensure correct alignment

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Industrial control system hardware assemblies
• Consumer electronics device internal wiring

Headers, Male Pins Procurement Notes

Verify the specific plating option indicated by the GT suffix against project requirements, as this variant specifies gold flash over the entire pin. Confirm that the 14-position count and dual-row layout match the target PCB footprint. Ensure the through-hole termination style is compatible with the assembly process. Cross-reference the manufacturer datasheet for precise mechanical dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a polarized, dual-row male header with a 0.05 inch pitch is required. The GT plating option provides full-pin gold coverage, which may be necessary for specific corrosion resistance or contact reliability needs. Consider the locking feature if vibration resistance is a priority. Evaluate the physical height options available within the series to ensure proper clearance within the enclosure.

Headers, Male Pins Part Context

This part belongs to the TSHC series of .050 x .050 polarized terminal strips from Major League Electronics. The series offers various row counts, pin configurations, and body heights. The TSHC-507 designation specifically identifies the 14-position dual-row variant. The series is characterized by its robust locking clip and polarization features for secure mating.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 14-position dual-row male format and 0.05 inch pitch. Verify that alternative components offer compatible polarization and locking mechanisms. Check if the replacement supports the same through-hole soldering method and fits the existing PCB land pattern without modification.
