TSHR-106-D-02-A-T-LF

Headers, Male Pins Overview

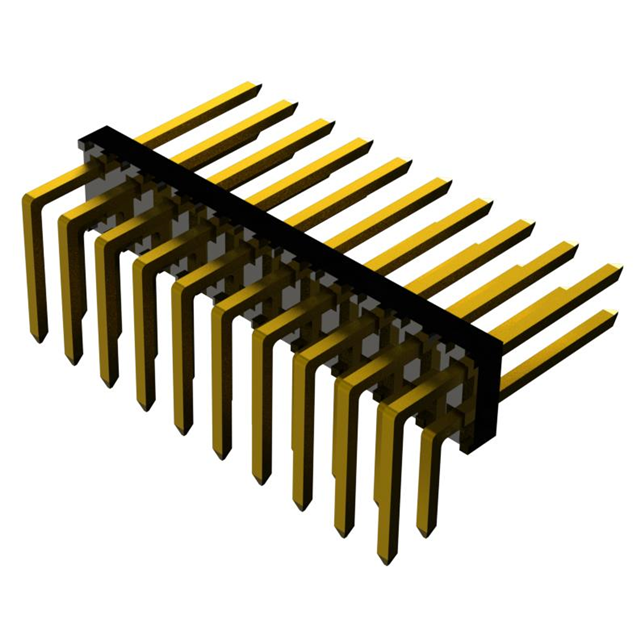

The TSHR-106-D-02-A-T-LF is a board connector manufactured by Major League Electronics. It features 12 contacts arranged in a dual-row configuration with male pin sockets. The component utilizes a 0.1 inch (2.54mm) pitch and is designed for right-angle through-hole mounting. It employs wire wrap terminals and includes a black insulator body.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design
• Dual-row male contact configuration
• Wire wrap terminal termination method

Headers, Male Pins Applications

• General-purpose PCB interconnection
• Header applications requiring right-angle orientation
• Through-hole assembly processes

Headers, Male Pins Procurement Notes

Verify the RoHS compliance status, as conflicting data exists between compliant and non-compliant records. Confirm the specific plating option corresponding to the suffix 'T' against official Major League Electronics documentation. Ensure the right-angle form factor matches the target PCB layout requirements before procurement.

Headers, Male Pins Selection Notes

Select this part for applications requiring a 12-position dual-row header with a 0.1 inch pitch. The right-angle design facilitates vertical mating connections. Verify that the wire wrap terminal style is compatible with the intended wiring or mating connector specifications. Check insulation resistance ratings if high isolation is required.

Headers, Male Pins Part Context

This component belongs to the TSHR series of headers from Major League Electronics. The series typically offers various row configurations and pitch options. This specific model represents a standard 12-contact variant within the broader catalog of interconnect products designed for reliable circuit board connections.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Major League Electronics TSHR series parts only if electrical and mechanical parameters match exactly.
