TSHS-108-D-14-B-GT-LF

Headers, Male Pins Overview

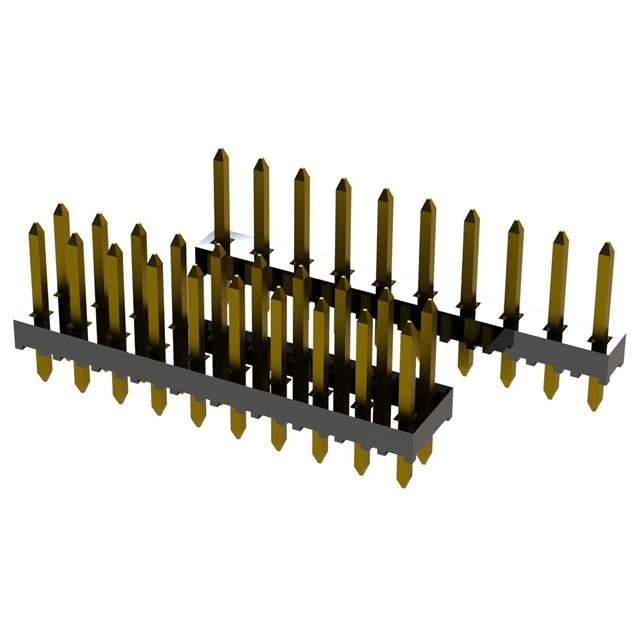

The TSHS-108-D-14-B-GT-LF is a board connector manufactured by Major League Electronics. It features 16 contacts arranged in two rows with a male configuration and straight orientation. The component utilizes a 0.1 inch pitch and solder terminals for mounting. It is designed as a receptacle type connector.

Headers, Male Pins Feature Summary

• Dual row male pin header configuration
• Straight through-hole solder termination
• Polarized design with alignment post options

Headers, Male Pins Applications

• General purpose board-to-board interconnects
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific plating option indicated by the GT suffix against project requirements. Confirm RoHS compliance status if lead-free operation is mandatory. Ensure the selected body height matches the mechanical envelope constraints of the target PCB assembly.

Headers, Male Pins Selection Notes

Select this part for applications requiring standard 0.1 inch spacing with polarized locking features. Consider the dual row layout for higher density connections within limited board space. Evaluate the straight profile for direct vertical mating scenarios.

Headers, Male Pins Part Context

This component belongs to the TSHS series of polarized terminal strips from Major League Electronics. The series offers various row counts, pitches, and termination styles. This specific model represents a mid-range contact count variant within the standard 0.1 inch pitch family.

Headers, Male Pins Replacement Considerations

Cross-reference with other Major League Electronics TSHS models sharing identical pitch and row specifications. Verify that alternative parts maintain compatible polarization keying and mechanical dimensions for direct substitution.
