TSHS-117-D-08-A-F-LF

Headers, Male Pins Overview

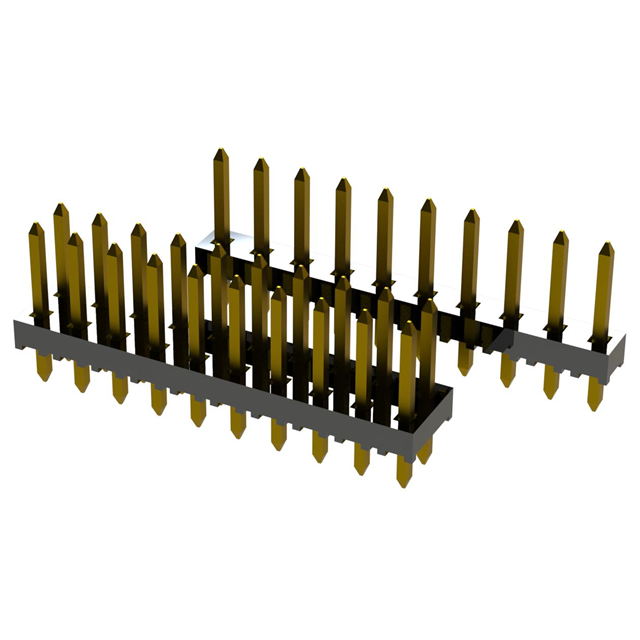

The TSHS-117-D-08-A-F-LF is a board connector manufactured by Major League Electronics. It features 34 contacts arranged in two rows with a male contact gender and straight orientation. The component utilizes a 0.1 inch pitch and solder terminals for PCB mounting. It is classified as a receptacle type with locking capabilities. The product complies with RoHS standards.

Headers, Male Pins Feature Summary

• Dual-row male header configuration for board-to-board or board-to-wire connections
• Locking mechanism ensures secure mating stability during operation
• Straight termination style facilitates standard vertical PCB mounting

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer's current datasheet to confirm plating options and tail length specifications. Ensure compatibility with mating socket connectors regarding pitch and row alignment. Confirm RoHS compliance documentation is available for regulatory requirements. Check for any recent design changes that may affect mechanical dimensions or material composition prior to final procurement approval.

Headers, Male Pins Selection Notes

Select this component when a dual-row male header with a 0.1 inch pitch is required. Consider the locking feature if vibration resistance is necessary for the application environment. Evaluate the straight orientation against available panel mount or right-angle alternatives. Verify that the contact count of 34 meets the circuit density requirements without excessive unused pins.

Headers, Male Pins Part Context

This part belongs to the TSHS series of headers from Major League Electronics. The series offers various configurations including different pin counts, row types, and termination styles. The TSHS-117 variant specifically denotes a dual-row configuration with defined physical dimensions suitable for standard through-hole assembly processes on printed circuit boards.

Headers, Male Pins Replacement Considerations

Cross-reference with other Major League Electronics TSHS series parts sharing the same 0.1 inch pitch and dual-row layout. Verify mechanical footprint compatibility before substituting with generic equivalents. Ensure mating connector specifications align with the male pin geometry and locking interface.
