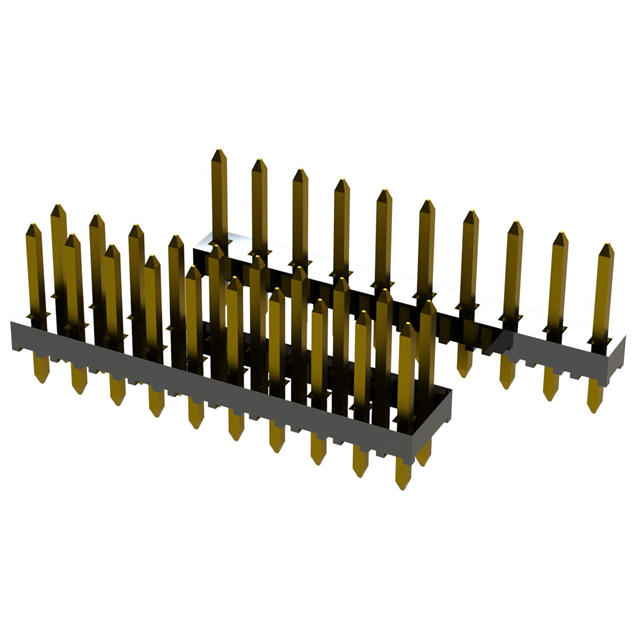

TSHS-240-D-18-FT-LF

TSHS-240-D-18-FT-LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Major League Electronics. Its product description is .079 Header. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSHS-240-D-18-FT-LF

• Description：.079 Header
• Series：TSHS-2
• Mfr：Major League Electronics
• Package：Bag
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：80
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.158" (4.01mm)
• Contact Length - Post：0.200" (5.08mm)
• Overall Contact Length：0.417" (10.59mm)
• Insulation Height：0.059" (1.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Polyamide (PA6T), Nylon 6T
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：-
