TSHS-240-S-18-FT-LF

Headers, Male Pins Overview

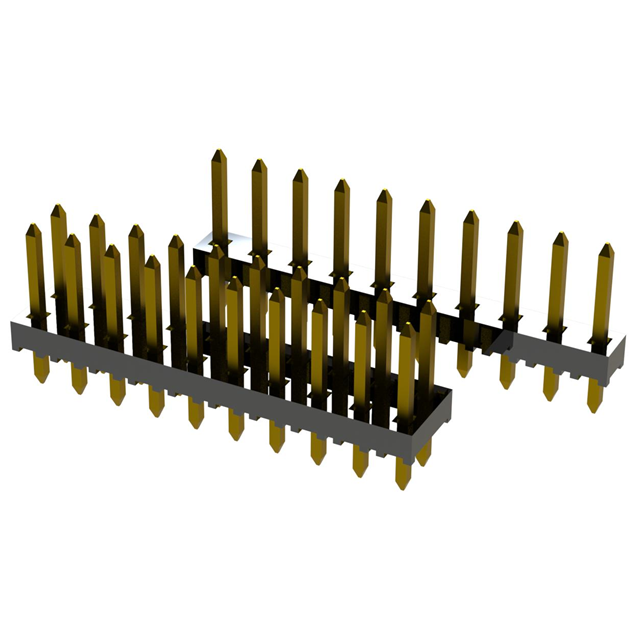

The TSHS-240-S-18-FT-LF is a board connector header manufactured by Major League Electronics. It features 40 contacts arranged in a single row with a 0.079-inch (2.00mm) pitch. The component utilizes through-hole solder terminals and includes filled pins on every other position. Designed for vertical mounting, it serves as a male receptacle interface for PCB applications.

Headers, Male Pins Feature Summary

• Single row configuration with 40 contact positions
• Through-hole termination method for secure PCB mounting
• Filled pin design on alternating positions to enhance structural stability

Headers, Male Pins Applications

• General purpose board-to-board interconnections
• Vertical PCB header assemblies
• Electronic device signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix FT-LF against official Major League Electronics documentation to confirm the filled pin configuration and lead-free status. Ensure compatibility with mating female connectors regarding the 0.079-inch pitch. Cross-reference the part number with current manufacturer datasheets to validate material specifications and plating options before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 40-position header with a 2.00mm pitch is required. The filled pin feature provides additional mechanical support compared to standard headers. Confirm that the through-hole mounting style aligns with the target PCB layout and manufacturing processes. Verify mating connector compatibility to ensure reliable electrical connections.

Headers, Male Pins Part Context

This part belongs to the TSHS series of board connectors from Major League Electronics. The series offers various configurations including different row counts, pitches, and tail styles. The TSHS-240 variant specifically denotes a 40-contact single-row header, distinguishing it from dual-row or different pitch alternatives within the same product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include the TSHS-240-S-18-F-LF, which shares the same physical dimensions and contact count but may differ in the filled pin specification. Verify functional equivalence and mating compatibility before substitution.
