TSHSM-107-D-06-GT-V-LF

Description：.100 Header
Series：-
Mfr：Major League Electronics
Package：Bag

SKU:20b09d51bb35 Category: Headers, Male Pins Brand: Major League Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

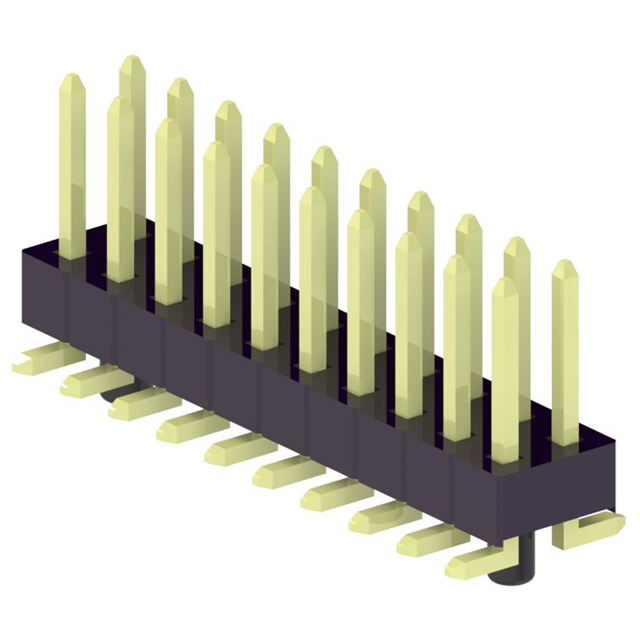

TSHSM-107-D-06-GT-V-LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Major League Electronics. Its product description is .100 Header. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSHSM-107-D-06-GT-V-LF

Description：.100 Header
Series：-
Mfr：Major League Electronics
Package：Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSHSM-107-D-06-GT-V-LF

TSHSM-107-D-06-GT-V-LF

Headers, Male Pins Overview

The TSHSM-107-D-06-GT-V-LF is a board connector featuring 14 contacts arranged in two rows with a 0.1-inch pitch. It utilizes surface mount terminals and operates as a male receptacle. The component supports an operating temperature range of -40°C to +105°C. Contact plating consists of gold over nickel, while the termination finish is matte tin. The unit is lead-free compliant and designed for vertical mounting applications.

Headers, Male Pins Feature Summary

Dual row configuration providing 14 total contact positions
Surface mount terminal design for direct PCB attachment
Gold over nickel contact plating for reliable conductivity

Headers, Male Pins Applications

Board-to-board interconnection systems
High-density electronic assembly modules
Vertical stacking circuit configurations

Headers, Male Pins Procurement Notes

Verify that the specific suffix LF confirms lead-free compliance status against current manufacturer specifications. Ensure the GT designation matches required gold plating thickness parameters. Confirm the V suffix aligns with intended vertical orientation requirements. Cross-reference the D code for dual-row accuracy. Validate RoHS regulatory status prior to final procurement authorization.

Headers, Male Pins Selection Notes

Select this component when a 0.1-inch pitch dual-row header is required for surface mount processes. The 14-contact capacity suits moderate density interconnect needs. Verify that the straight vertical form factor fits within the mechanical envelope constraints. Ensure mating connector compatibility with the specified pin dimensions and plating type.

Headers, Male Pins Part Context

This part belongs to the TSHSM series of Major League Electronics board connectors. The series offers various row counts and contact configurations. The model specifies a dual-row layout with surface mount termination. It represents a standard solution for vertical board connections in electronic assemblies.
