Product Detailed Parameters
- Description：RF FILTER LOWPASS 1.8675GHZ 0402
- Series：TSL1
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR)
- Frequency：1.8675GHz Center
- Bandwidth：315MHz
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：0.65dB
- Mounting Type：Surface Mount
- Package / Case：0402 (1005 Metric), 4 PC Pad
- Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height (Max)：0.016" (0.40mm)
Download product information
Overview

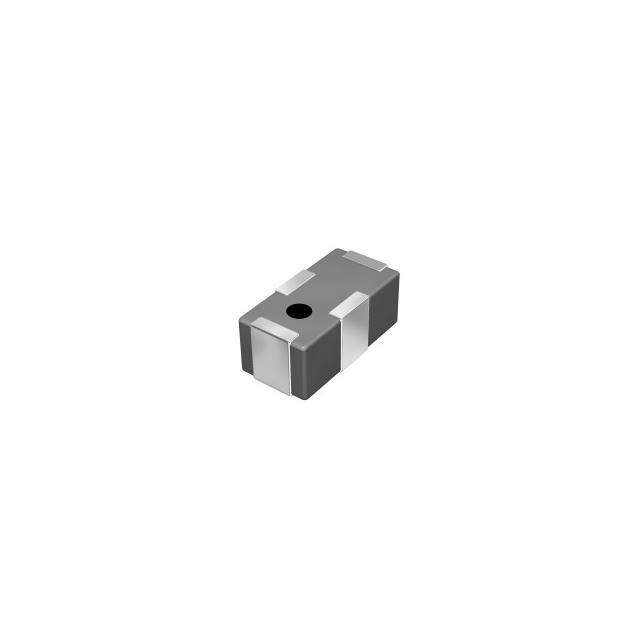

The TSL1N15H1G86NS022T is a multilayer ceramic low-pass filter manufactured by Taiyo Yuden. It operates with a center frequency of 1.8675 GHz and features a bandwidth of 315 MHz. The device exhibits an insertion loss of 0.65 dB and is housed in a compact 0402 (1005 Metric) surface-mount package. Designed for RF signal conditioning, it supports halogen-free construction and complies with RoHS and REACH standards.
Feature Summary
- Multilayer ceramic construction optimized for low-pass filtering applications
- Halogen-free design compliant with environmental regulations
- Suitable for reflow soldering processes
Applications
- RF signal conditioning in wireless communication modules
- Filtering in cellular handset front-end circuits
- Signal integrity management in mobile devices
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the specific suffix matches the required electrical specifications. Ensure storage conditions adhere to moisture sensitivity levels defined in the datasheet. Check for end-of-life status or obsolescence notices before finalizing procurement plans.
Selection Notes
Select this component when a compact low-pass filter is required for frequencies around 1.8675 GHz. The 0402 package size suits space-constrained designs. Verify impedance matching requirements against system specifications. Consider thermal performance within the operating temperature range during circuit layout.
Part Context
This part belongs to the TSL1 series of multilayer ceramic devices from Taiyo Yuden. These components are engineered for high-frequency RF applications requiring precise filtering characteristics. The series utilizes advanced ceramic materials to achieve stable performance in miniaturized form factors suitable for modern electronics.
Replacement Considerations
The FI105L186822-T is listed as a suggested alternate product. Verify compatibility regarding frequency range and package dimensions before substitution.
