TSL75-H50HM18ST-32.768K

Oscillators Overview

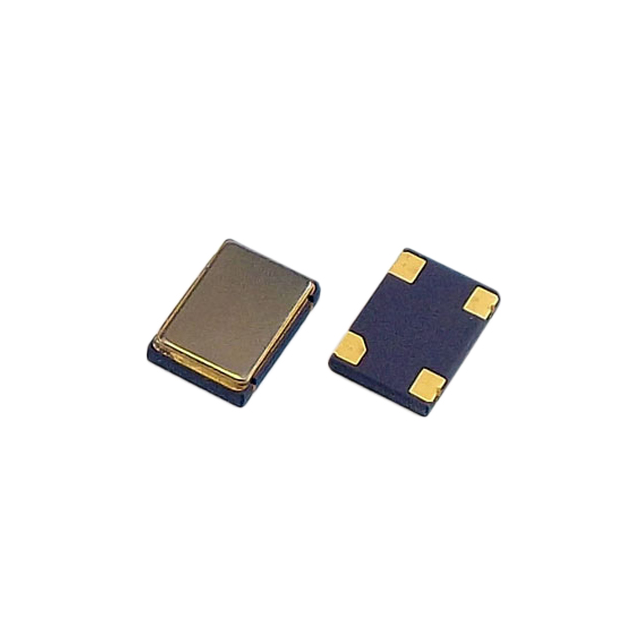

The TSL75-H50HM18ST-32.768K is a miniature ceramic surface-mount oscillator manufactured by Transko Electronics, Inc. It operates at a fixed frequency of 32.768 kHz and utilizes HCMOS output logic levels. The device is designed for low-power applications and features an enable/disable control function operating at 1.8V. It is housed in a compact 4-SMD, no-lead package with dimensions of 7.00mm x 5.00mm x 1.7mm, suitable for space-constrained electronic designs.

Oscillators Feature Summary

• HCMOS output interface for standard digital compatibility
• Integrated enable and disable control functionality
• Compact 4-SMD no-lead ceramic package design

Oscillators Applications

• Real-time clock circuits in portable electronics
• Low-power embedded system timing references
• Consumer devices requiring precise 32.768 kHz synchronization

Oscillators Procurement Notes

Verify the specific ordering suffix to confirm voltage and package variations. Ensure the component meets RoHS compliance requirements for your assembly process. Cross-reference the manufacturer's datasheet for absolute maximum ratings and electrical characteristics before integration into final products.

Oscillators Selection Notes

Select this component when a small footprint and low power consumption are critical. The 1.8V enable pin allows for efficient power management in battery-operated systems. Verify that the HCMOS output swing matches the input requirements of the connected microcontroller or timer circuitry.

Oscillators Part Context

This part belongs to the TSL series of miniature ceramic oscillators from Transko Electronics. These components are engineered for high stability and reliability in consumer and industrial applications. The series offers various frequencies and packages to support diverse timing needs in modern electronic hardware.

Oscillators Replacement Considerations

Check for direct substitutes within the same Transko TSL family with matching frequency and package dimensions. Ensure any replacement maintains the HCMOS output type and 1.8V enable control capability to preserve circuit functionality.
