TSM-104-01-TM-DV-TR

Headers, Male Pins Overview

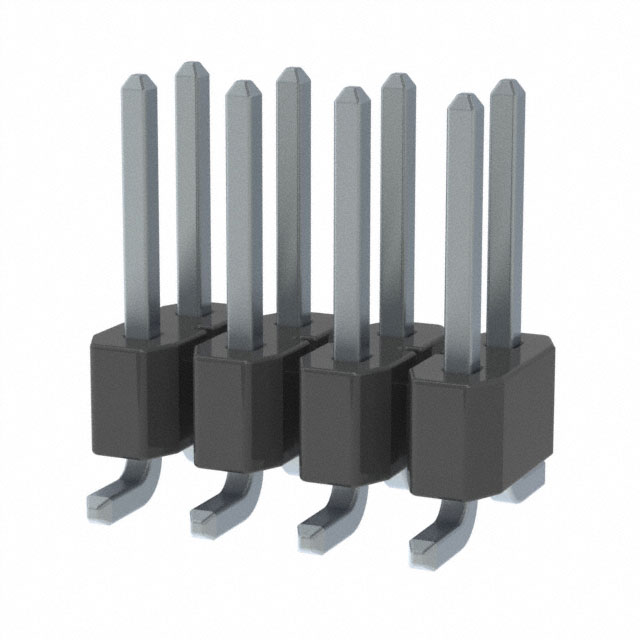

The TSM-104-01-TM-DV-TR is a surface mount pin header from the Samtec TSM series. It features a 2.54 mm (0.100 inch) pitch and is configured as a single-row connector with four positions. The component utilizes phosphor bronze contacts with tin plating for reliable electrical connections. Designed for board-to-board or cable applications, it employs a push-pull fastening mechanism. The housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0 for flammability. It operates within a temperature range of -55°C to +105°C and is supplied in tape and reel packaging.

Headers, Male Pins Feature Summary

• Surface mount terminal strip designed specifically for automated processing
• Push-pull fastening mechanism ensures secure mating retention
• Flexible stacking solutions accommodate various post heights
• High reliability construction tested for mixed flowing gas environments

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-density electronic assemblies
• Automotive A-Series product integration

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure correct contact length and termination style. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process. Check for alternate packaging options if tape and reel availability is constrained. Ensure compatibility with standard reflow profiles for tin-plated contacts.

Headers, Male Pins Selection Notes

Select this component when a single-row surface mount header with a 2.54 mm pitch is required. Consider the push-pull feature for applications needing enhanced mechanical retention during handling. Evaluate the operating temperature range and flammability rating against environmental constraints. Compare contact material and plating options if corrosion resistance or conductivity needs differ.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions by Samtec Inc. The series offers extended life products capable of high mating cycles. It supports various row configurations and post heights to mate with different socket types. The design facilitates efficient surface mount processing in modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data through official manufacturer channels before substitution.
