TSM-104-03-L-DV-A

Headers, Male Pins Overview

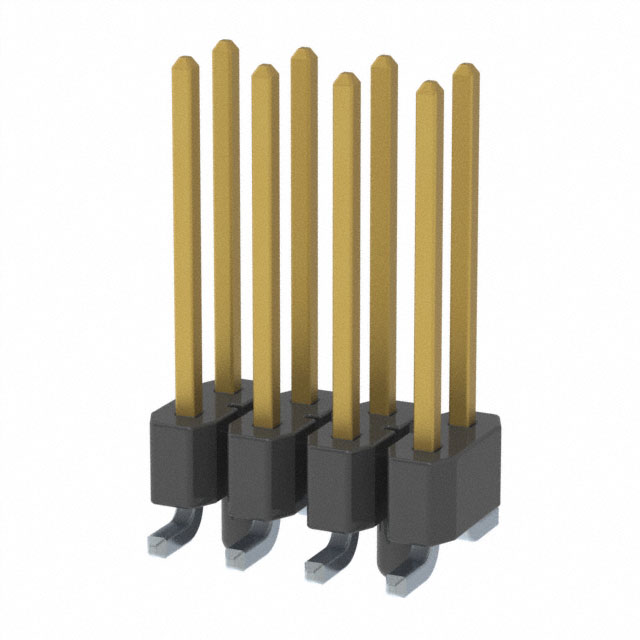

The TSM-104-03-L-DV-A is an 8-position, dual-row surface mount pin header from the Samtec TSM series. It features a 2.54 mm (0.100 inch) pitch and utilizes phosphor bronze contacts with gold plating for reliable signal transmission. The connector is designed for board-to-board or cable applications, offering a straight mounting style suitable for automated SMD assembly processes.

Headers, Male Pins Feature Summary

• Designed specifically for surface mount applications to facilitate efficient processing
• Features .025 inch square post terminals for high durability and mating cycles
• Constructed with liquid crystal polymer insulation rated UL94 V-0 for flame resistance

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• High-density circuit board stacking solutions
• Automotive A-Series product configurations requiring extended life performance

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm contact length and termination details. Ensure compatibility with standard reflow soldering profiles for surface mount technology. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust surface mount header with square post terminals is required. The TSM series offers extended life performance, passing 10-year Mixed Flowing Gas testing. Consider the available post heights to ensure proper mating with corresponding socket connectors in your design architecture.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions by Samtec Inc. These headers are engineered for severe environments, meeting or exceeding MIL-DTL-55302 testing standards. The series provides versatile options including single, double, and triple row configurations with various pin technologies.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified alternatives. Generic equivalents may not replicate the specific square post geometry or extended life characteristics required for high-cycle applications.
