TSM-106-01-F-SV

Headers, Male Pins Overview

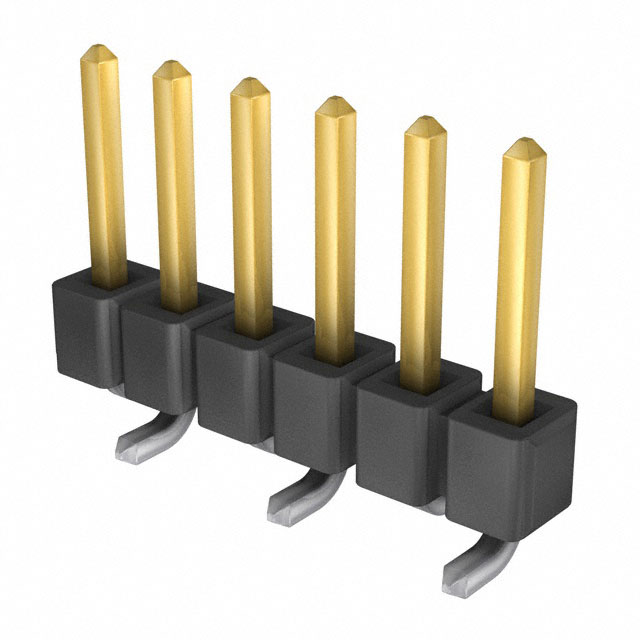

The TSM-106-01-F-SV is a single-row surface mount terminal strip manufactured by Samtec Inc. It features six male pin contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes phosphor bronze contacts finished with gold flash over nickel on the mating post and matte tin on the termination tail. Designed for vertical surface mount installation, it offers a mating contact length of 5.84 mm (0.230 inches). The housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0. This component supports pick-and-place assembly processes.

Headers, Male Pins Feature Summary

• Designed specifically for surface mount applications to facilitate automated processing
• Features push-pull fastening type for secure board attachment
• Supports flexible stacking solutions with standard post heights

Headers, Male Pins Applications

• Board-to-board interconnections in high-density electronics
• Automotive A-Series product integration
• General electronic assemblies requiring surface mount headers

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official Samtec documentation to ensure correct plating and termination specifications. Confirm that the selected variant matches the required surface mount orientation and row count. Check RoHS compliance status and moisture sensitivity level requirements for your manufacturing process. Ensure the ordering code aligns with the desired packaging format such as tape and reel or cut tape availability.

Headers, Male Pins Selection Notes

Select this component when a single-row, 6-position surface mount header is required. The 2.54 mm pitch is suitable for standard PCB footprints. Consider the gold flash plating for reliable signal transmission. Verify that the 5.84 mm post height accommodates the mating socket depth. Ensure the LCP insulation material meets thermal and flammability standards for the target application environment.

Headers, Male Pins Part Context

This part belongs to the TSM series of .100" Surface Mount Terminal Strips. The series offers various row options including single, double, and triple configurations. It is designed to mate with any Samtec socket using standard post heights. The TSM line provides solutions for mixed technology pins and extended life products meeting severe environment testing criteria.

Headers, Male Pins Replacement Considerations

Consult the official Samtec catalog for direct cross-references within the TSM family. Variants may differ in plating, row count, or termination style. No public substitute part numbers are confirmed for this specific configuration.
