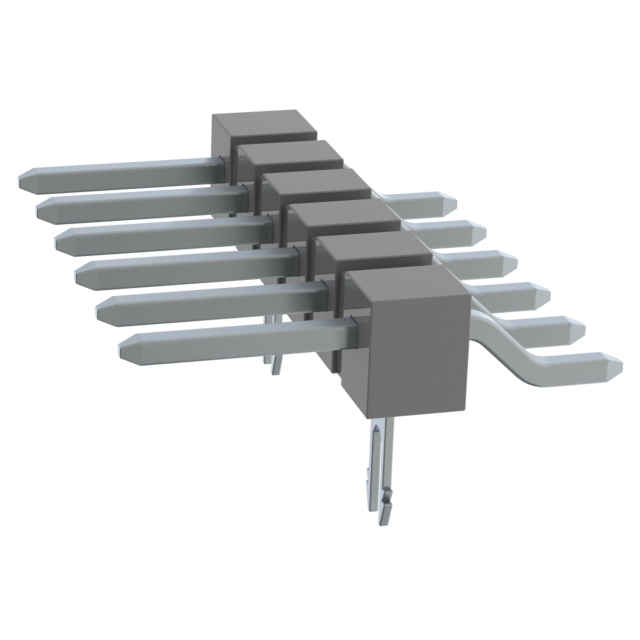

TSM-106-01-T-SH-LC

$1.12

Description：CONN HEADER SMD R/A 6POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube

SKU:4d3cd4fa23f2 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSM-106-01-T-SH-LC is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD R/A 6POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSM-106-01-T-SH-LC

Description：CONN HEADER SMD R/A 6POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.120" (3.05mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Lock
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSM-106-01-T-SH-LC

TSM-106-01-T-SH-LC

Headers, Male Pins Overview

The TSM-106-01-T-SH-LC is a surface mount terminal strip from the Samtec TSM series. It features a single row of six positions with a 2.54mm (0.100 inch) pitch. The connector utilizes .025-inch square posts and includes right-angle pins for board-to-board or cable applications. Constructed with phosphor bronze contacts and liquid crystal polymer insulation, it operates within a temperature range of -55°C to 105°C.

Headers, Male Pins Feature Summary

Features flexible stacking technology with .025-inch square posts for reliable interconnects
Designed specifically for surface mount assembly processes
Incorporates right-angle pin configurations to optimize vertical space utilization

Headers, Male Pins Applications

Board-to-board interconnections
Surface mount circuit assemblies
High-density electronic packaging

Headers, Male Pins Procurement Notes

Verify the specific suffix against the official datasheet to confirm exact pin configuration and termination style. Ensure compatibility with automated surface mount equipment specifications. Confirm that the selected variant meets the required thermal profile for reflow soldering processes without compromising contact integrity.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row surface mount header is required. The right-angle design facilitates compact vertical integration in constrained enclosures. Verify that the 2.54mm pitch aligns with the mating connector footprint and that the square post construction supports the necessary mechanical stability.

Headers, Male Pins Part Context

This part belongs to the TSM series, which specializes in flexible stacking solutions. The series offers various row options and pin technologies tailored for high-reliability applications. The TSM designation indicates a terminal strip designed for efficient surface mounting while maintaining robust electrical performance standards.
