TSM-107-01-L-DH-009-P-TR

Headers, Male Pins Overview

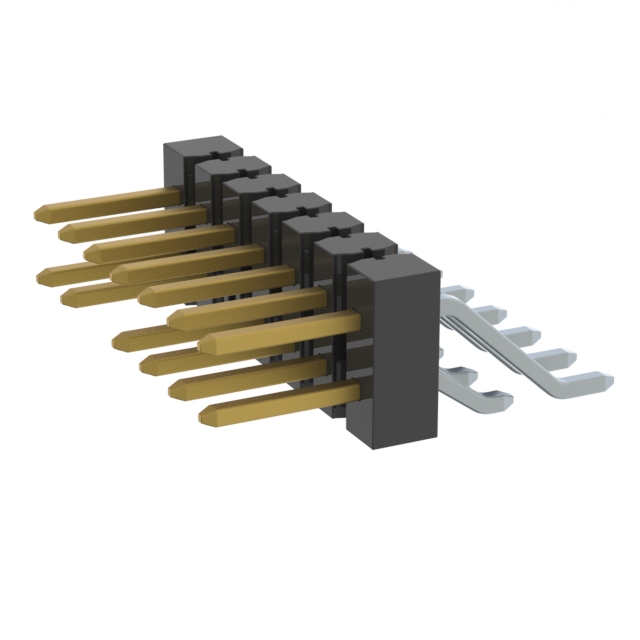

The TSM-107-01-L-DH-009-P-TR is a surface mount header manufactured by Samtec Inc. It features a 2.54 mm (0.100 inch) pitch with 14 positions arranged in a dual row configuration. The connector utilizes male pin contacts made of phosphor bronze, finished with gold plating over nickel for the mating interface and tin plating on the termination side. Designed for board-to-board or cable applications, it employs a right-angle mounting style with push-pull retention. The housing is constructed from black liquid crystal polymer (LCP) rated UL 94 V-0, supporting an operating temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design facilitates compact vertical integration within electronic assemblies.
• Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
• Liquid crystal polymer insulation provides high thermal stability and flammability compliance.

Headers, Male Pins Applications

• Board-to-board interconnections requiring right-angle orientation
• High-density electronic module assembly
• Industrial control system circuit boards

Headers, Male Pins Procurement Notes

Verify that the specific suffixes correspond to the required right-angle configuration and tape-and-reel packaging format. Confirm that the contact plating thickness and material composition align with the intended environmental durability requirements. Ensure compatibility with automated pick-and-place equipment specifications for surface mount processing.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header with a 2.54 mm pitch is required. The dual-row layout supports higher pin counts within a constrained footprint compared to single-row alternatives. Consider the thermal properties of the LCP insulator for applications involving elevated operating temperatures or reflow soldering profiles.

Headers, Male Pins Part Context

This part belongs to the TSM series of .100" Surface Mount Terminal Strips. The series offers various row configurations and pin styles to accommodate diverse PCB layout needs. The TSM family is designed for robust performance in general-purpose electronic interconnect applications, providing flexibility through multiple termination and housing options.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TSM series headers with identical pitch and position counts, such as TSM-107-01-L-DV-P-TR for straight pins or TSM-107-01-S-DH-009-P-TR for different contact materials. Verify mechanical dimensions and electrical ratings before substitution.
