TSM-107-01-S-DV-LC-P

Headers, Male Pins Overview

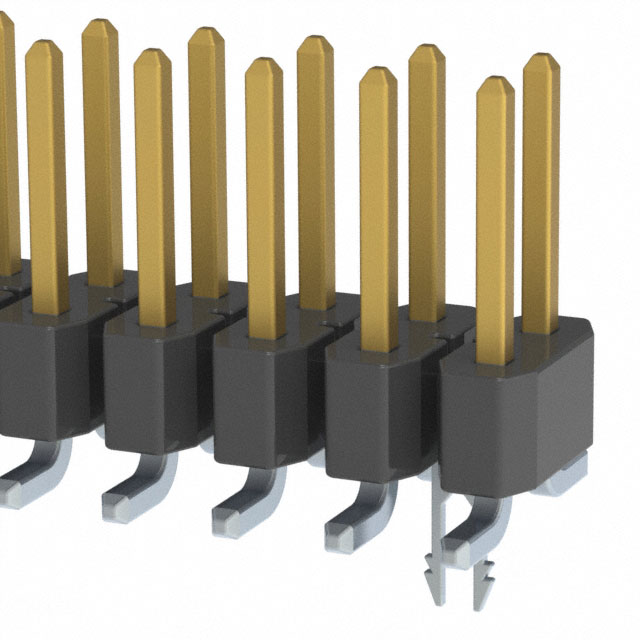

The TSM-107-01-S-DV-LC-P is a surface mount header strip manufactured by Samtec Inc. It features a 2.54 mm (0.100 inch) pitch with 14 positions arranged in two rows. The connector utilizes .025-inch square posts for mating and includes alignment pins to ensure precise placement during assembly. The contact surfaces are finished with flash gold plating, while the tails are tin-plated for soldering. Constructed from phosphor bronze contacts and liquid crystal polymer insulation, it supports operating temperatures from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Designed as an Extended Life Product™ verified through rigorous environmental testing
• Incorporates alignment pins for accurate surface mount positioning
• Utilizes flash gold plating on contact areas for reliable signal transmission
• Configurable post heights allow matching with various mating receptacles

Headers, Male Pins Applications

• High reliability board-to-board interconnections requiring extended durability
• Automotive electronics applications meeting A-Series standards
• Severe environment testing qualified industrial systems
• Mixed technology termination assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Samtec catalog to confirm the exact configuration of post height, plating type, and termination style. Ensure that the selected variant matches the required mechanical constraints and environmental ratings for the target application. Cross-reference the part number with the latest datasheet to confirm availability and compliance with current RoHS directives before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust surface mount header with high mating cycle endurance is required. The inclusion of alignment pins makes it suitable for automated pick-and-place processes where precision is critical. Consider the available post heights to ensure compatibility with existing socket connectors. This series is appropriate for designs needing MIL-DTL-55302 level reliability without excessive cost due to the flash gold option.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions from Samtec. These headers are engineered for high-reliability applications, offering both vertical and horizontal mounting options. The series is recognized for its configurability, allowing designers to tailor pin counts and row arrangements to specific circuit board layouts while maintaining consistent electrical performance.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same family include TSM-107-01-S-DV-A and TSM-107-01-F-DV-LC-P. Verify that alternative parts maintain the same 2.54 mm pitch and 14-position count. Check if the replacement offers identical alignment pin configurations and compatible post heights to ensure mechanical interchangeability in the existing assembly.
