TSM-107-02-LM-DV-P-TR

Headers, Male Pins Overview

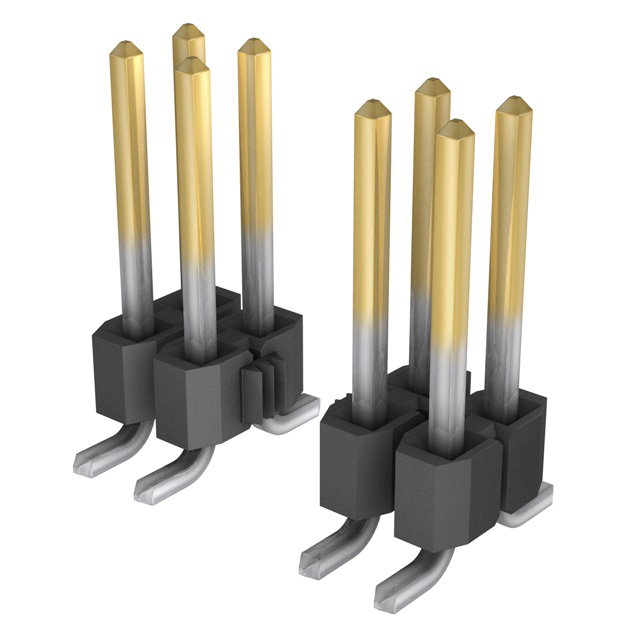

The Samtec TSM-107-02-LM-DV-P-TR is a .100" (2.54 mm) surface mount terminal strip featuring 14 positions arranged in a dual-row configuration. It utilizes phosphor bronze contacts with gold plating and a liquid crystal polymer (LCP) insulator. The component supports a straight mounting style with solder pin termination, rated for currents between 4.1 A and 5.4 A. It operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Designed for automated pick-and-place assembly processes via specific pad configurations.
• Features extended life capabilities validated through high mating cycle testing.
• Constructed with robust materials suitable for harsh environmental conditions.

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Automotive electronic control units
• Industrial communication modules

Headers, Male Pins Procurement Notes

Verify the exact suffix against official Samtec documentation to confirm plating thickness and tape/reel specifications. Ensure compatibility with standard SMT reflow profiles and check RoHS compliance status for the specific manufacturing batch. Cross-reference the ECAD model for accurate footprint implementation.

Headers, Male Pins Selection Notes

Select this header when a .100" pitch surface mount solution with high reliability is required. Consider the dual-row layout for increased I/O density. Verify that the mateable socket series aligns with the specified post length and contact geometry for proper mechanical engagement.

Headers, Male Pins Part Context

This component belongs to the TSM series of surface mount terminal strips from Samtec. These headers are engineered for applications requiring high durability and consistent performance over extended operational lifespans. The series offers various row counts and termination options to suit diverse PCB design constraints.

Headers, Male Pins Replacement Considerations

Compatible mates include Samtec SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, and HLE series sockets. Verify mechanical dimensions and electrical ratings before substituting with generic equivalents.

Headers, Male Pins FAQ

What is the mating cycle rating for this component?

The TSM series is classified as an Extended Life Product, tested for up to 2,500 mating cycles depending on the specific variant configuration.

Does this part support automated assembly?

Yes, the DV suffix indicates a design optimized for pick-and-place assembly equipment.
