TSM-108-01-L-DH-LC-P

Headers, Male Pins Overview

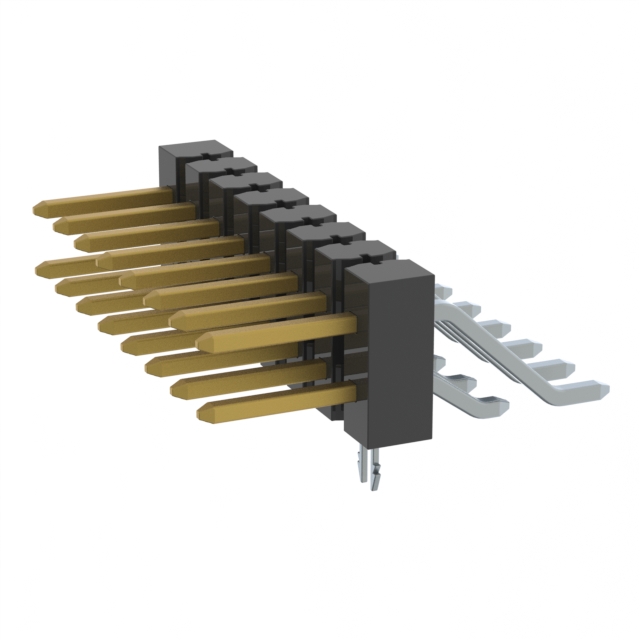

The TSM-108-01-L-DH-LC-P is a surface mount header manufactured by Samtec Inc. It features a dual row configuration with 16 positions and a 0.100 inch (2.54 mm) pitch. The connector utilizes phosphor bronze contacts with gold plating over nickel for the mating interface and tin with a nickel barrier for termination. Designed for board-to-board applications, it operates within a temperature range of -55°C to 105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual beam contact system provides reliable signal integrity
• Surface mount design facilitates automated assembly
• Gold-plated contacts ensure corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Automotive electronics systems

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required dual row configuration and pin count. Confirm that the gold plating specification aligns with environmental requirements. Ensure the surface mount footprint corresponds to the target PCB layout before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust surface mount header with high reliability is required. The dual row arrangement supports higher density connections compared to single row options. Consider the operating temperature range and material compatibility with adjacent components during the selection process.

Headers, Male Pins Part Context

This component belongs to the TSM series of flexible stacking solutions from Samtec. These headers are engineered for demanding environments where standard connectors may fail. The series offers various configurations to meet diverse spacing and height requirements in modern electronic designs.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical specifications before considering alternative suppliers or generic equivalents.
