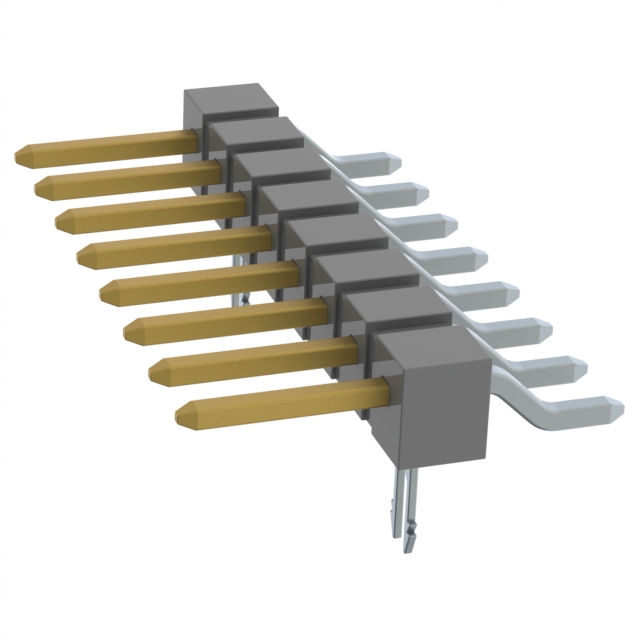

TSM-108-01-S-SH-LC-P is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD R/A 8POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for TSM-108-01-S-SH-LC-P
- Description：CONN HEADER SMD R/A 8POS 2.54MM
- Series：TSM
- Mfr：Samtec Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：8
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.120" (3.05mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock, Pick and Place
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for TSM-108-01-S-SH-LC-P
Headers, Male Pins Overview
The TSM-108-01-S-SH-LC-P is a surface mount terminal strip manufactured by Samtec Inc. It features an 8-position, single-row configuration with a 2.54 mm (0.100 inch) pitch. The connector utilizes male square pins with gold plating and phosphor bronze contacts. Designed for board-to-board or cable applications, it offers a straight orientation and operates within a temperature range of -55°C to +125°C. The housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0.
Headers, Male Pins Feature Summary
- Surface mount design with right-angle pin orientation for compact PCB layouts
- Gold-plated phosphor bronze contacts ensure reliable signal transmission
- Liquid crystal polymer insulation provides high thermal stability and flame resistance
Headers, Male Pins Applications
- Board-to-board interconnections in dense electronic assemblies
- Cable-to-board connections requiring surface mount termination
- High-density array configurations in consumer electronics
Headers, Male Pins Procurement Notes
Verify the specific suffix 'SH' indicates right-angle orientation and 'LC' denotes low contact cost variant when sourcing. Confirm RoHS3 compliance and MSL Level 1 status for assembly compatibility. Ensure the ordering part number matches the exact pin count and row configuration required for the target PCB footprint.
Headers, Male Pins Selection Notes
Select this component for applications requiring right-angle surface mount headers with standard .100 inch spacing. The gold-plated contacts support general-purpose signaling needs. Verify that the right-angle form factor fits within the mechanical clearance constraints of the final enclosure design compared to straight variants.
Headers, Male Pins Part Context
This part belongs to the TSM series of .100 inch surface mount terminal strips. The series offers various row counts, orientations, and contact plating options. The TSM-108-01-S-SH-LC-P specifically represents an 8-position single-row right-angle header with gold contacts, designed for automated pick-and-place processing.
Headers, Male Pins Replacement Considerations
TSM-108-01-S-SH-P
Headers, Male Pins FAQ
What is the contact material used in this connector?
The contacts are made of phosphor bronze with a gold plating finish.
Does this connector have a shroud?
No, this connector type is unshrouded.
