TSM-110-02-F-SV-P

Headers, Male Pins Overview

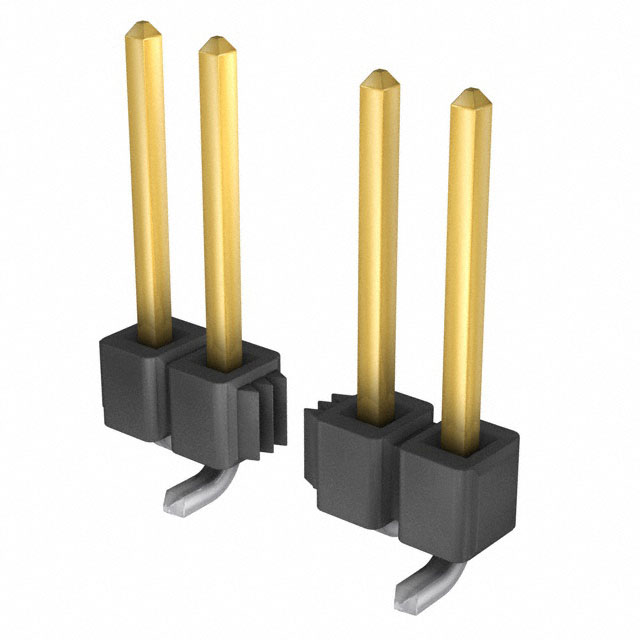

The TSM-110-02-F-SV-P is a surface mount terminal strip manufactured by Samtec Inc. It features 10 positions in a single row with a 0.100 inch (2.54 mm) pitch. The connector utilizes male square post contacts with gold plating for mating surfaces and tin termination tails. Designed for vertical orientation, it supports mixed technology applications and offers high reliability through Severe Environment Testing (SET) qualification.

Headers, Male Pins Feature Summary

• Severe Environment Testing (SET) qualified for extended life and high mating cycles
• Surface mount design with mixed technology pin options
• Gold-plated square post contacts for reliable signal integrity

Headers, Male Pins Applications

• Automotive A-Series product integration
• High-speed data transmission up to 8 Gbps
• Board-to-board interconnects requiring robust environmental resistance

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to ensure correct contact plating and termination specifications. Confirm that the -P variant aligns with required packaging and handling constraints. Cross-reference the SET qualification status if deployment involves harsh operational environments or stringent reliability standards beyond standard industrial use.

Headers, Male Pins Selection Notes

Select this component when surface mount assembly is required for 2.54 mm pitch connections. Ensure compatibility with mating sockets designed for .025 inch square posts. Consider the SET qualification benefits for applications demanding higher durability and corrosion resistance compared to standard terminal strips.

Headers, Male Pins Part Context

This part belongs to the Tiger Eye™ TSM series, characterized by .025 inch square post terminals. The series provides versatile mounting options including straight and right-angle configurations. It is engineered for high-performance interconnects in demanding electronic systems.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for equivalent parts with matching pitch and contact geometry. Verify mechanical fit and electrical characteristics before replacing with alternative manufacturers' components.
