TSM-112-01-L-DH-A-P

Headers, Male Pins Overview

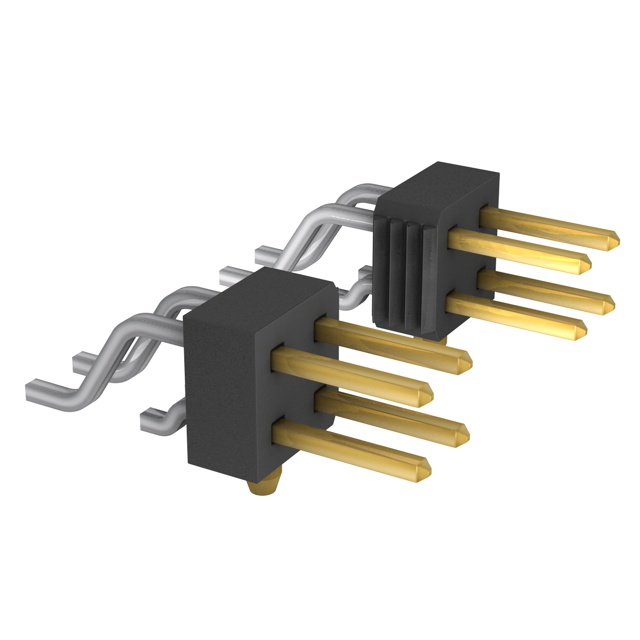

The TSM-112-01-L-DH-A-P is a surface mount terminal strip featuring a .100 inch (2.54 mm) pitch and 24 positions arranged in two rows. It utilizes .025 inch square posts for mating with socket contacts. The connector employs mixed technology pins, combining vertical and right-angle orientations to facilitate board-to-board or cable connections. Designed as an Extended Life Product, it meets rigorous environmental standards.

Headers, Male Pins Feature Summary

• Features mixed technology pins allowing for both vertical and right-angle termination options within a single assembly.
• Constructed with .025 inch square posts designed to mate with standard Samtec socket contacts.
• Qualified as an Extended Life Product™, passing 10-year Mixed Flowing Gas corrosion testing.
• Supports high-speed data transmission with performance capabilities up to 8 Gbps.

Headers, Male Pins Applications

• High-density board-to-board interconnections requiring mixed pin orientations
• Signal integrity critical applications supporting data rates up to 8 Gbps
• Harsh environment deployments requiring extended life product qualification
• Automotive electronics utilizing Automotive A-Series component standards

Headers, Male Pins Procurement Notes

Verify the specific configuration against official Samtec documentation before procurement. Confirm that the mixed technology pin arrangement aligns with the target PCB layout requirements. Ensure compatibility with mating socket components to maintain signal integrity and mechanical reliability during operation.

Headers, Male Pins Selection Notes

Select this model when mixed vertical and right-angle pin configurations are required for space-constrained designs. Consider its Extended Life Product status for applications demanding long-term reliability in corrosive environments. Evaluate the 8 Gbps performance capability against system bandwidth requirements to ensure adequate signal transmission quality.

Headers, Male Pins Part Context

This component belongs to the TSM series of flexible stacking solutions manufactured by Samtec Inc. The series offers various row counts and pin styles to accommodate diverse interconnection needs. The TSM-112-01-L-DH-A-P specifically addresses applications needing dual-row surface mount connectivity with mixed orientation flexibility.

Headers, Male Pins Replacement Considerations

Consult Samtec's official substitution guide for verified equivalent parts. Cross-reference pin count, pitch, and mixed technology specifications to ensure functional compatibility. Verify environmental qualifications match if operating in severe conditions.
