TSM-112-01-L-SH-P-TR

Headers, Male Pins Overview

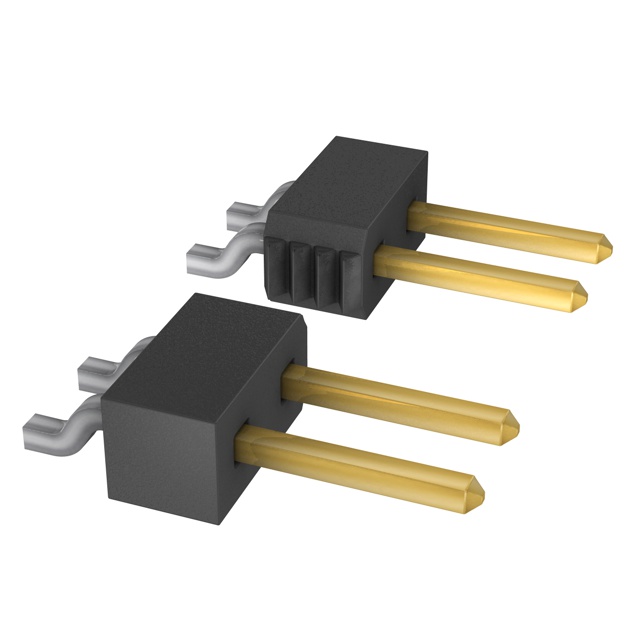

The TSM-112-01-L-SH-P-TR is a surface mount terminal strip manufactured by Samtec Inc. It features a .100 inch (2.54 mm) pitch and a .025 inch square post contact system. The connector is configured as a double-row header with 12 positions per row, totaling 24 contacts. It utilizes phosphor bronze contacts with gold plating for mating surfaces and tin plating for the column. The housing is constructed from liquid crystal polymer (LCP) rated UL94 V-0. Termination is achieved via surface mount soldering in a right-angle orientation.

Headers, Male Pins Feature Summary

• Square post contact design facilitates high mating cycles and extended life performance.
• Surface mount construction supports automated pick-and-place processing.
• Gold-plated contacts ensure reliable signal transmission in demanding environments.

Headers, Male Pins Applications

• Board-to-board interconnections requiring robust surface mount termination
• High-density electronic assemblies utilizing standard .100 inch spacing
• Applications necessitating high mating cycle durability

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm contact plating, insulation material, and packaging format. Ensure the selected variant matches the required row count and pin configuration for the target PCB layout. Cross-reference the part number with the latest datasheet revision to confirm compliance with current environmental standards and material specifications before final procurement.

Headers, Male Pins Selection Notes

Select this component when a rigid surface mount header with square post geometry is required. The double-row configuration provides increased I/O density within a standard footprint. Consider the right-angle orientation for vertical board stacking or space-constrained layouts. Verify that the mating socket interface aligns with the .025 inch square post specification to ensure proper mechanical engagement and electrical continuity.

Headers, Male Pins Part Context

This part belongs to the TSM series of .100 inch surface mount terminal strips. The series offers various row options and termination styles designed for high-reliability applications. The TSM-112-01-L-SH-P-TR specifically denotes a double-row, right-angle surface mount header with gold-plated contacts and tape-and-reel packaging for efficient assembly integration.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same family include variants with different contact platings or row configurations, such as TSM-112-01-L-DH-P-TR. Verify dimensional compatibility and electrical ratings before substitution. Alternative manufacturers may offer similar pitch connectors, but square post geometry requires specific mating hardware not found in standard round-pin systems.
