TSM-113-01-T-DV-LC-P

Headers, Male Pins Overview

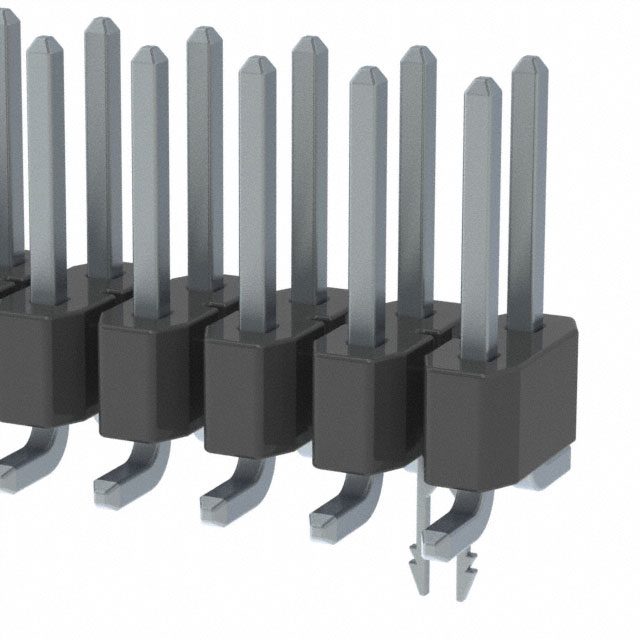

The TSM-113-01-T-DV-LC-P is a surface mount header manufactured by Samtec Inc. It features a 2.54 mm (0.100 inch) pitch with 13 positions arranged in two rows, totaling 26 contacts. The connector utilizes square post terminals with tin plating on both the mating and column surfaces. Constructed from phosphor bronze contacts and black liquid crystal polymer insulation rated UL94 V-0, it supports a temperature range of -55°C to 105°C. This double vertical variant includes locking clips for secure board attachment.

Headers, Male Pins Feature Summary

• Double vertical surface mount configuration facilitates automated processing and reliable PCB attachment.
• Integrated locking clips provide mechanical retention and prevent dislodgement during handling or operation.
• Square post terminal design ensures consistent mating engagement with compatible socket connectors.
• Tin-plated phosphor bronze contacts offer corrosion resistance and reliable electrical conductivity.

Headers, Male Pins Applications

• High-density board-to-board interconnections requiring surface mount technology
• Automotive electronic modules needing robust mechanical retention
• Industrial control systems utilizing standard 0.100 inch pitch interfaces

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix LC-P corresponds to the required locking clip feature and packaging type. Confirm that the tin plating specification meets the environmental requirements for the intended application. Ensure the double vertical height aligns with the mating connector's engagement length. Cross-reference the UL94 V-0 rating against flame safety standards applicable to the final assembly.

Headers, Male Pins Selection Notes

Select this component when a surface mount header with integrated mechanical locking is required for high-reliability applications. The double vertical format suits designs needing increased spacing or mixed-height pin configurations. Verify compatibility with mating sockets that accept 0.100 inch pitch square posts. Consider the operating temperature range and material flammability rating for compliance with industry-specific safety regulations.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions designed for severe environments. It passes extended life testing including Mixed Flowing Gas exposure. The series offers various row options and termination styles to support diverse signal integrity needs up to high data rates. It meets or exceeds MIL-DTL-55302 testing standards for durability.

Headers, Male Pins Replacement Considerations

TSH-113-01-LM-DV-A

Headers, Male Pins FAQ

What is the function of the LC suffix in the part number?

The LC suffix indicates the inclusion of locking clips, which provide additional mechanical retention for the connector on the printed circuit board.

What contact material is used in this connector?

The contacts are made from phosphor bronze with a tin plating finish on both the mating interface and the column termination areas.
