TSM-114-01-F-SV-P

Headers, Male Pins Overview

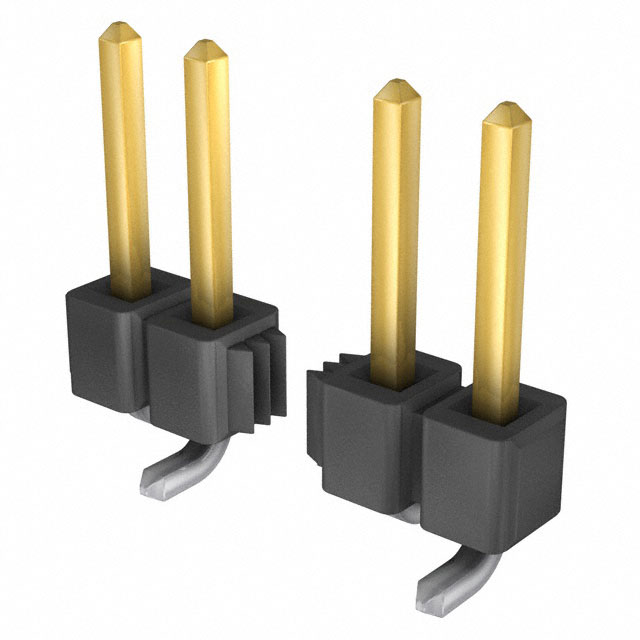

The Samtec TSM-114-01-F-SV-P is a surface mount header featuring 14 positions in a single row with a 2.54 mm pitch. It utilizes male pin contacts designed for board-to-board or cable applications. The connector employs a straight mounting style and includes peg options for secure PCB installation. Insulator material is black liquid crystal polymer, rated UL 94 V-0. Contact plating is gold over phosphor bronze, ensuring reliable signal transmission.

Headers, Male Pins Feature Summary

• Surface mount terminal strip design for automated assembly
• Gold-plated phosphor bronze contacts for conductivity
• Black LCP insulator housing with UL 94 V-0 flammability rating
• Straight orientation compatible with standard PCB layouts

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General purpose electronic assemblies requiring SMD headers

Headers, Male Pins Procurement Notes

Verify the complete part number including suffixes to ensure correct contact plating and termination type. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process. Cross-reference official Samtec documentation for accurate mechanical dimensions and recommended footprint patterns before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, surface-mount male header is required. Ensure the mating connector matches the 2.54 mm pitch and contact length specifications. Consider the current rating and voltage limits relative to the application environment. Verify that the straight configuration fits within the available vertical clearance on the target PCB assembly.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions by Samtec. The series offers various configurations for high-density interconnects. The TSM-114 variant specifically denotes a 14-position layout. It is engineered for reliability in compact electronic designs requiring robust surface-mount connectivity.

Headers, Male Pins Replacement Considerations

Compatible substitutes include TSM-114-01-F-SV and TSM-114-01-L-SV. Verify that alternative suffixes do not alter critical electrical parameters or mechanical dimensions. Ensure mating compatibility with existing connectors before substitution.
