TSM-115-01-S-DH-P-TR

Headers, Male Pins Overview

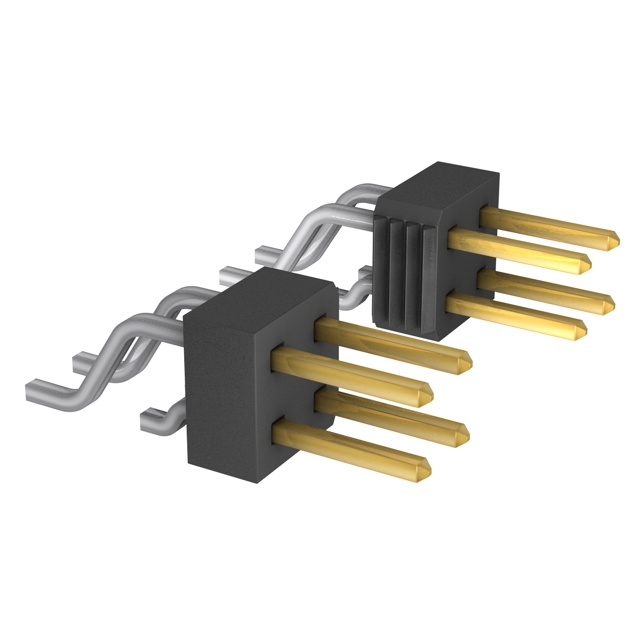

The TSM-115-01-S-DH-P-TR is a surface mount header manufactured by Samtec Inc., featuring 15 positions in a dual row configuration. It utilizes a 2.54mm (0.100 inch) pitch with right-angle termination for PCB mounting. The connector employs gold-plated phosphor bronze contacts housed in black liquid crystal polymer (LCP). Rated for 3A current and 250VAC voltage, it operates within a temperature range of -55°C to 125°C. The component is supplied in tape-and-reel packaging and complies with RoHS standards.

Headers, Male Pins Feature Summary

• Right-angle surface mount design facilitates compact board-to-board interconnections
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• High-temperature LCP insulation supports operation in demanding thermal environments

Headers, Male Pins Applications

• Board-to-board stacking connections
• Mezzanine circuit interconnects
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and housing material variations. Ensure compatibility with automated pick-and-place equipment specifications. Confirm that the reel quantity matches production requirements. Cross-reference the lead time with current supply chain status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for high-density applications. The dual-row configuration maximizes pin count within limited footprint areas. Verify that the 2.54mm pitch aligns with mating connector specifications. Consider the operating temperature range and voltage ratings to ensure suitability for the target electronic environment.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions from Samtec. These headers are designed for high-reliability applications requiring robust mechanical stability. The series offers various configurations to accommodate different board stack heights and connection densities. The TSM line is widely used in industrial and commercial electronics for secure interconnects.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TSM series headers with identical pitch and position counts. Verify that alternative parts maintain the same right-angle orientation and surface mount termination style. Ensure mating connectors match the 2.54mm pitch and contact geometry for proper engagement.
