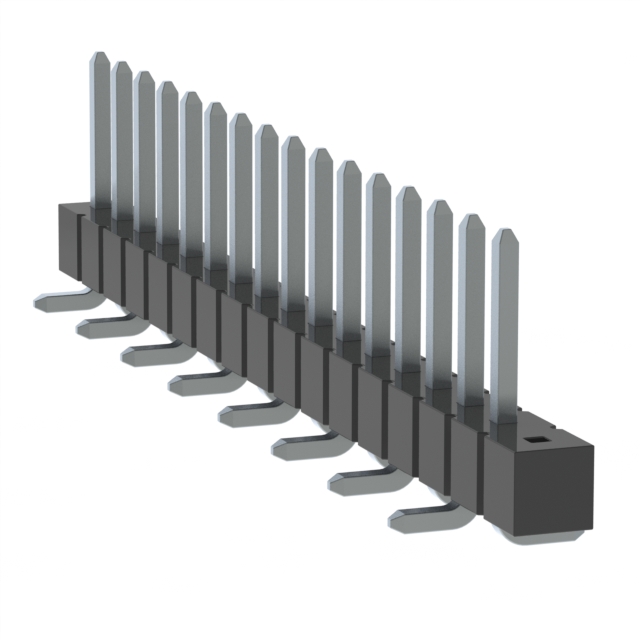

TSM-117-01-T-SV-001

Description：CONN HEADER SMD 17POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube

SKU:c3a2a7829c01 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSM-117-01-T-SV-001 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 17POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSM-117-01-T-SV-001

Description：CONN HEADER SMD 17POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：17
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：16
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSM-117-01-T-SV-001

TSM-117-01-T-SV-001

Headers, Male Pins Overview

The Samtec TSM-117-01-T-SV-001 is a surface mount male pin header from the TSM series, designed for board-to-board or cable connections. It features a single row with 17 positions and a 0.100-inch (2.54 mm) pitch. The connector utilizes phosphor bronze contacts with a tin plating finish on both mating and termination surfaces. Constructed with liquid crystal polymer insulation rated UL94 V-0, it supports a working temperature range of -55°C to 105°C. The component is packaged in tubes and offers a push-pull locking mechanism.

Headers, Male Pins Feature Summary

Surface mount design with mixed technology pin options
Push-pull locking mechanism for secure connection
Liquid crystal polymer insulation for thermal stability

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
General electronic assembly requiring surface mount headers

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against official Samtec documentation to ensure correct contact material and plating specifications. Confirm that the packaging type matches project requirements, as variations exist between tape-and-reel and tube formats. Cross-reference the part number with current datasheets to validate environmental ratings and RoHS compliance status before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row surface mount header with a 2.54mm pitch is required. Ensure the application environment remains within the specified -55°C to 105°C operating temperature range. Verify that the tin-plated contact finish meets the conductivity and corrosion resistance needs of the target circuit interface.

Headers, Male Pins Part Context

This part belongs to the TSM .100 Surface Mount Terminal Strip family, which provides flexible stacking solutions. The series offers various row configurations and post heights to accommodate different mating socket requirements. It is engineered for high reliability in demanding environments, often meeting severe environment testing standards.
