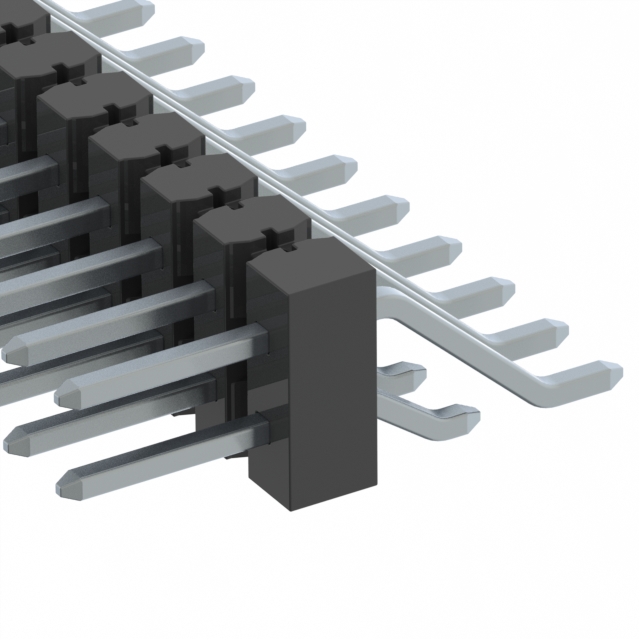

TSM-120-01-T-DH-P-TR

$9.05

Description：CONN HEADER SMD R/A 40POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tape & Reel (TR),Tape & Reel (TR)

SKU:531836a06091 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TSM-120-01-T-DH-P-TR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD R/A 40POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for TSM-120-01-T-DH-P-TR

Description：CONN HEADER SMD R/A 40POS 2.54MM
Series：TSM
Mfr：Samtec Inc.
Package：Tape & Reel (TR),Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：40
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.240" (6.10mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Pick and Place
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for TSM-120-01-T-DH-P-TR

TSM-120-01-T-DH-P-TR

Headers, Male Pins Overview

The TSM-120-01-T-DH-P-TR is a surface mount header strip manufactured by Samtec Inc. It features a 2.54 mm (0.100 inch) pitch with 40 positions arranged in two rows. The connector utilizes phosphor bronze contacts with tin plating for the mating interface and column surfaces. Designed for board-to-board or cable applications, it employs a push-pull fastening type and supports a temperature range of -55°C to +105°C. The housing is constructed from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

Designed specifically for surface mount applications with mixed technology pin options
Features .025" square post contact system for reliable connection
Constructed with LCP insulation material for high thermal stability
Supports pick-and-place processing for automated assembly

Headers, Male Pins Applications

Board-to-board interconnections
High-density array assemblies
Automotive electronics modules
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against the official Samtec catalog to ensure correct configuration. Confirm that the tin-plated contacts meet the environmental requirements for the intended application. Check the datasheet for precise footprint dimensions and reflow soldering profiles compatible with the LCP material properties.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54 mm pitch surface mount header is required. The tin plating offers cost-effectiveness compared to gold finishes. Ensure the design accommodates the straight orientation and the specific height requirements for mating with corresponding sockets or cables.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions. It is an extended life product designed to withstand severe environments. The series provides various row configurations and pin styles to support diverse PCB layout needs.

Headers, Male Pins Replacement Considerations

Consult the Samtec TSM catalog for alternative position counts or plating options. Verify mechanical compatibility before substituting with similar headers from other manufacturers.
