TSM-128-01-L-DV-A is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 56POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for TSM-128-01-L-DV-A
- Description：CONN HEADER SMD 56POS 2.54MM
- Series：TSM
- Mfr：Samtec Inc.
- Package：Tube,Tube
- Connector Type：Header, Cuttable
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：56
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.230" (5.84mm)
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：10.0µin (0.25µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Guide
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for TSM-128-01-L-DV-A
Headers, Male Pins Overview

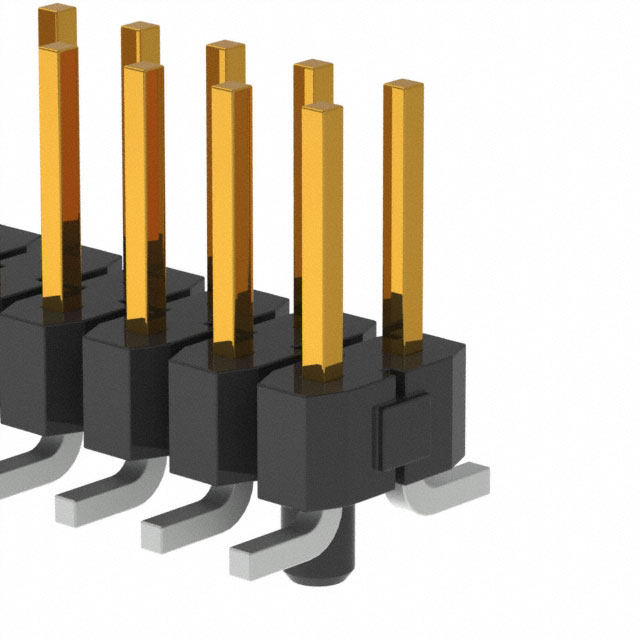

The TSM-128-01-L-DV-A is a Samtec header strip featuring a 2.54 mm (0.1 in) pitch and 56 positions across two rows. Designed for surface mount installation, it utilizes phosphor bronze contacts with gold plating on the mating interface and tin on the tail. The connector supports a straight orientation with a contact length of 5.84 mm (0.23 in). It operates within a temperature range of -55°C to +125°C and uses liquid crystal polymer insulation rated UL 94 V-0.
Headers, Male Pins Feature Summary
- Surface mount terminal strip design for automated pick-and-place assembly
- Flexible stacking capability with standardized .100 inch row spacing
- Push-pull locking mechanism ensures secure board-to-board retention
Headers, Male Pins Applications
- Board-to-board interconnects requiring flexible stacking solutions
- High-density electronic assemblies utilizing surface mount technology
- Industrial control systems demanding reliable signal transmission
Headers, Male Pins Procurement Notes
Verify the specific suffix configuration against official datasheets to ensure compatibility with intended mating components. Confirm that the surface mount footprint matches the PCB layout requirements. Check RoHS compliance status and moisture sensitivity levels prior to integration into manufacturing processes.
Headers, Male Pins Selection Notes
Select this component when a rigid pin header is insufficient for stack height variations. The flexible tail design accommodates misalignment between boards. Ensure the operating environment stays within the specified thermal limits and that the current rating meets circuit demands without exceeding conductor capacity.
Headers, Male Pins Part Context
This part belongs to the TSM series of high-reliability header strips from Samtec. These connectors are engineered for applications requiring robust mechanical performance and electrical stability. The series offers various termination options and post heights to suit diverse electronic packaging needs.
Headers, Male Pins Replacement Considerations
TSM-128-01-L-DV
Headers, Male Pins FAQ
What is the contact material used in this connector?
The contacts are made of phosphor bronze with gold plating on the mating area.
Does this connector support right-angle mounting?
No, the TSM-128-01-L-DV-A is designed for straight, vertical surface mount installation.
